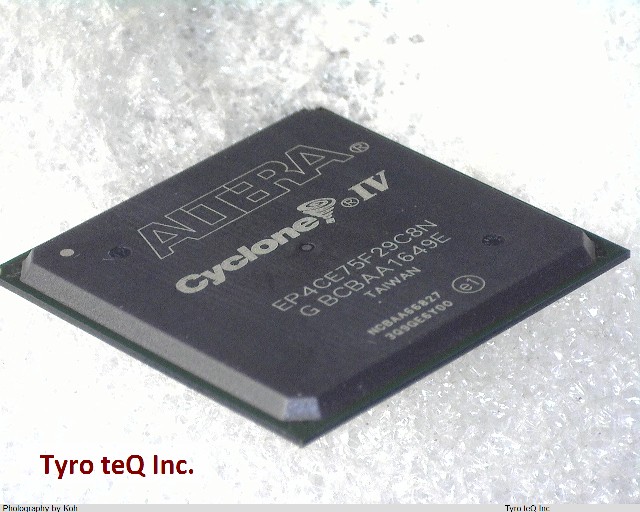

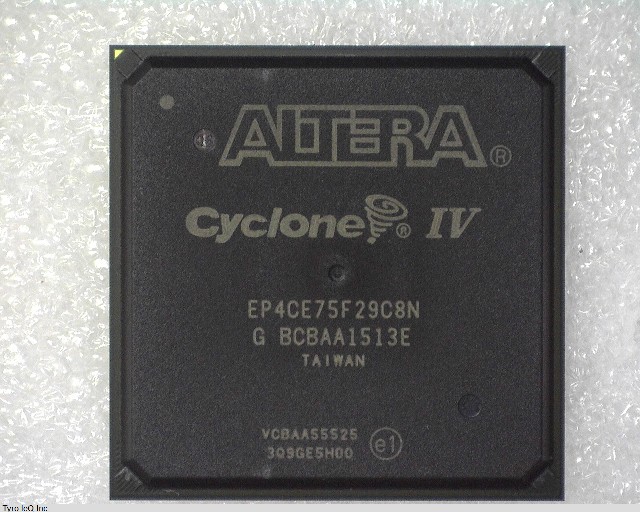

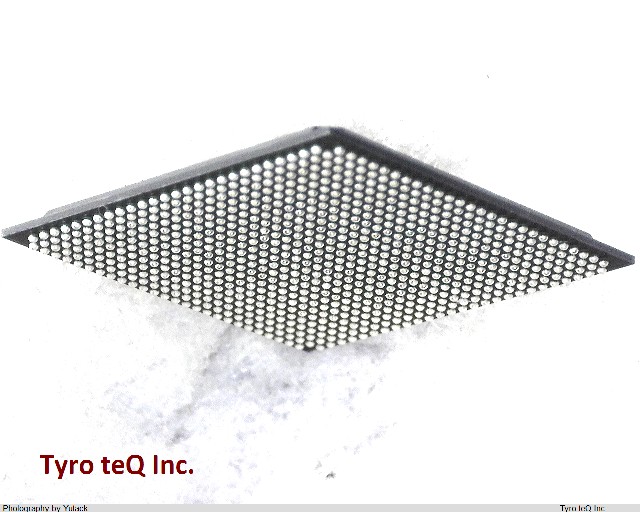

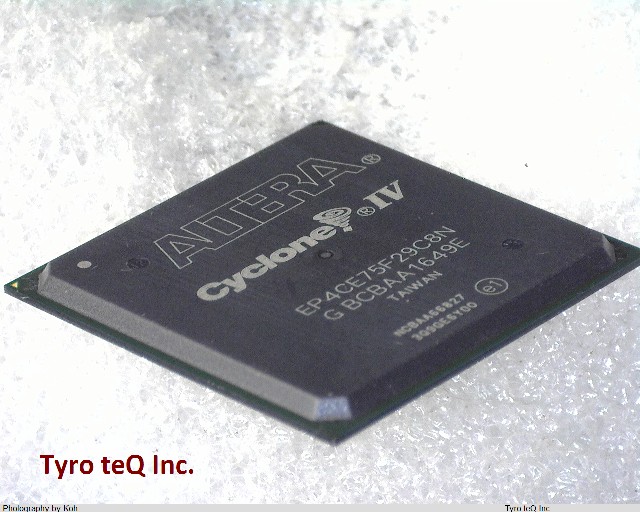

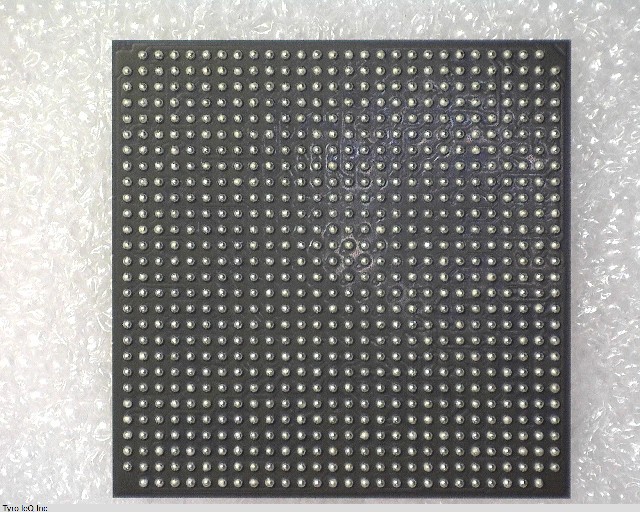

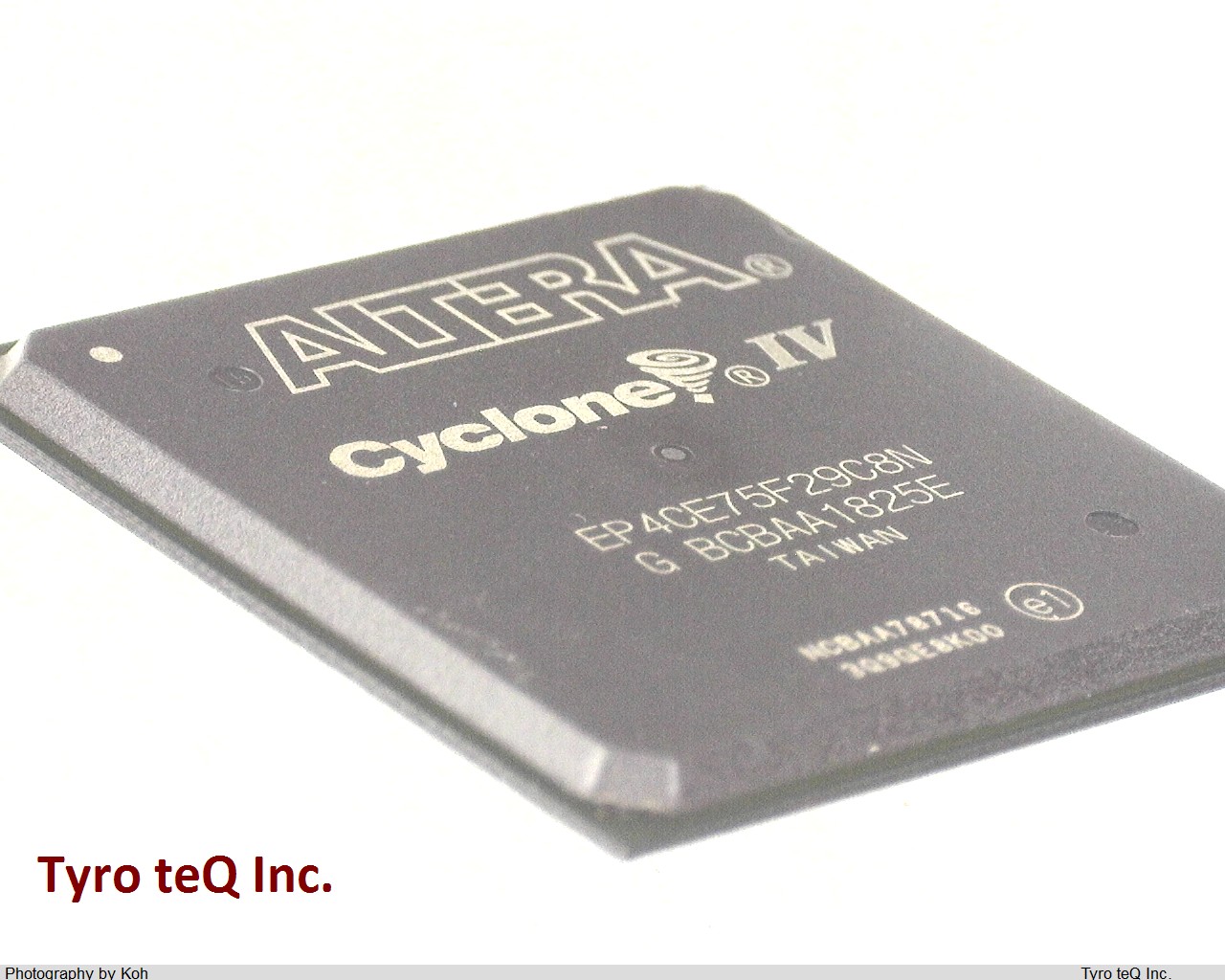

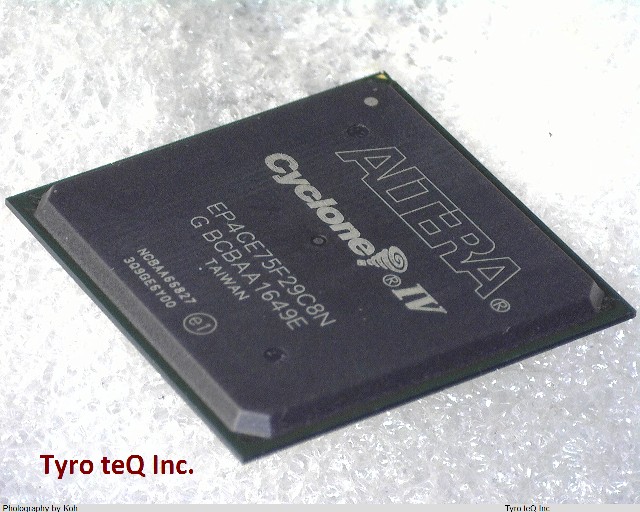

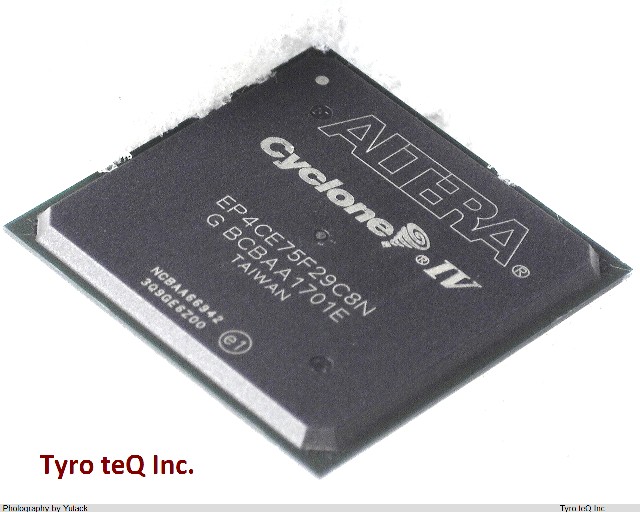

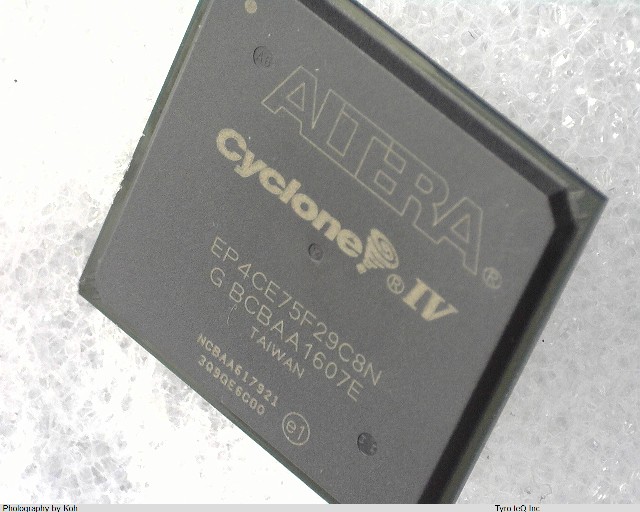

EP4CE75F29C8N データシート

Name: EP4CE75F29C8N
Brand: ALTERA
SKU: 150140175-0000-0000-0000

EP4CE75F29C8N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EP4CE75F29C8N の詳細情報

型番	EP4CE75F29C8N
メーカー	ALTERA
データシート
Clock Frequency-Max	472.5 MHz
JESD-30 Code	S-PBGA-B780
JESD-609 Code	e1
Length	29 mm
Moisture Sensitivity Level	3
Number of CLBs	4713
Number of Inputs	429
Number of Logic Cells	75408
Number of Outputs	429
Number of Terminals	780
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	4713 CLBS
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA780,28X28,40
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.2,1.2/3.3,2.5 V
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Qualification Status	Not Qualified
Seated Height-Max	2.4 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	1.25 V
Supply Voltage-Min	1.15 V
Supply Voltage-Nom	1.2 V
Surface Mount	YES
Temperature Grade	OTHER
Terminal Finish	TIN SILVER COPPER

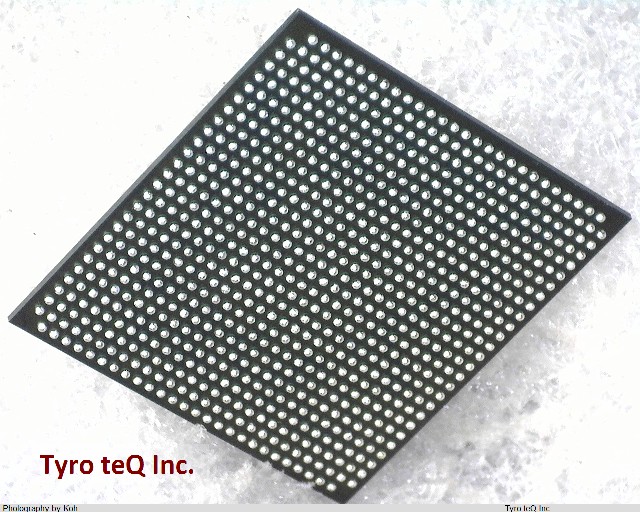

Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	29 mm
