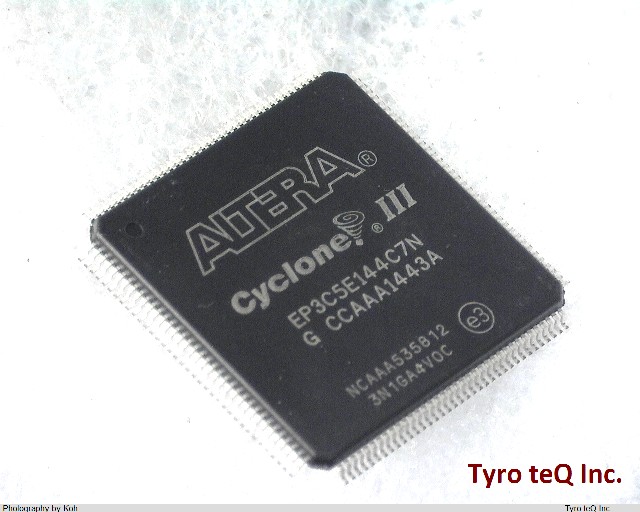

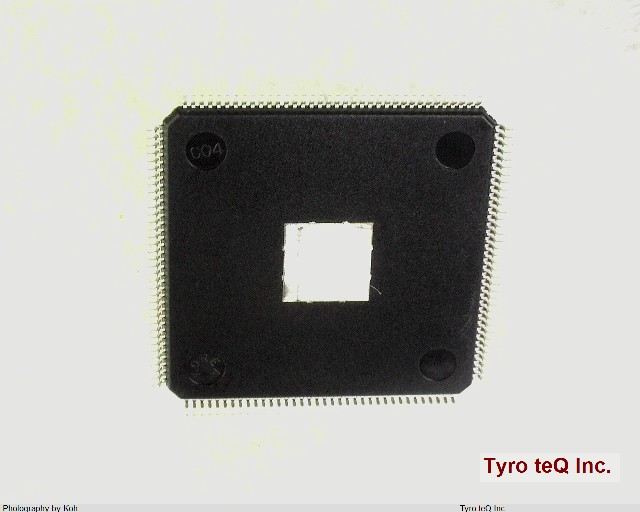

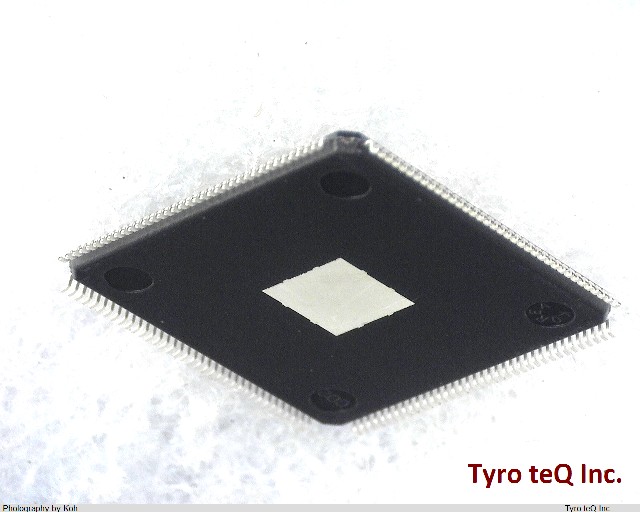

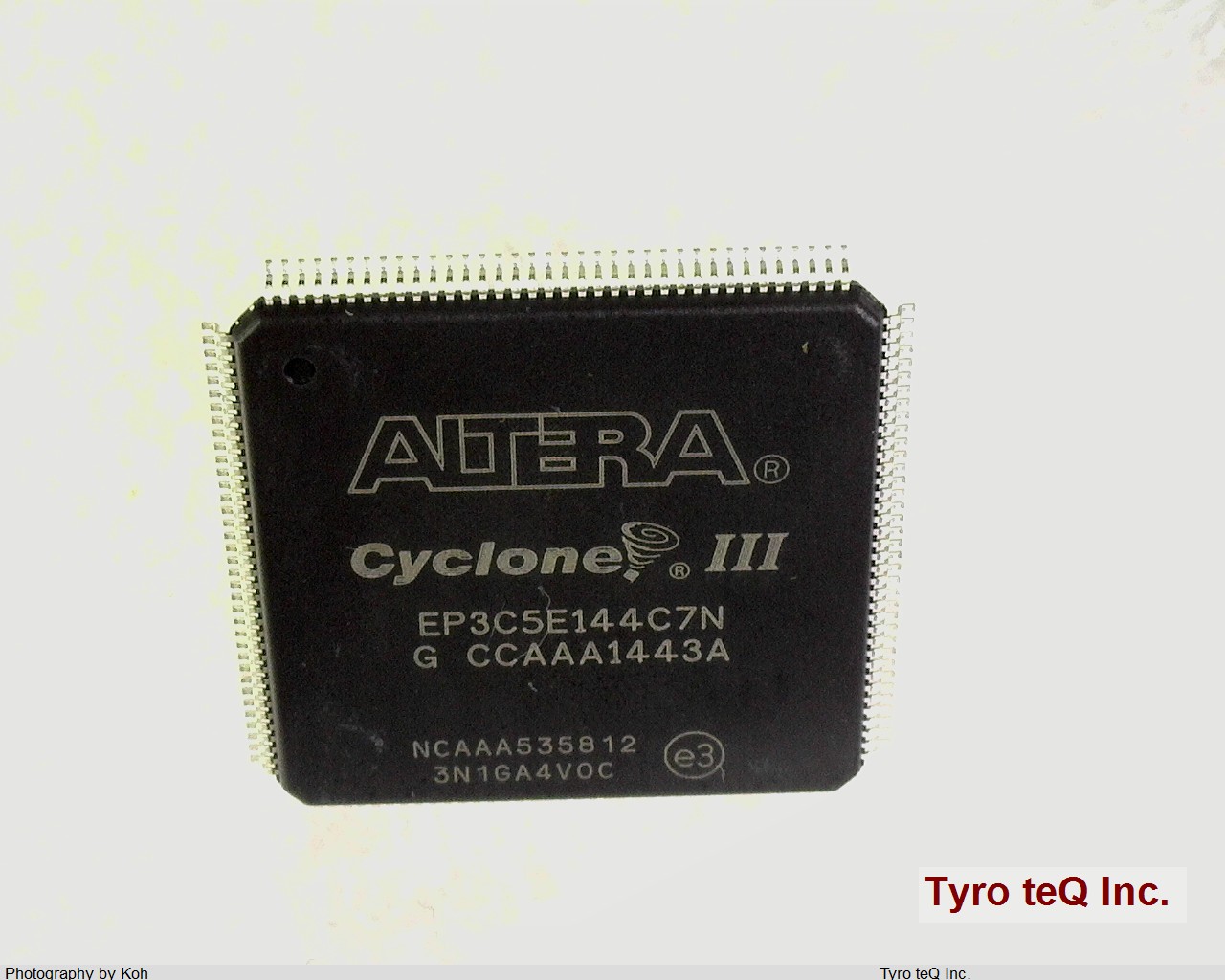

EP3C5E144C7N データシート

Name: EP3C5E144C7N
Brand: ALTERA
SKU: 150038804-0000-0000-0000

EP3C5E144C7N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EP3C5E144C7N の詳細情報

型番	EP3C5E144C7N
メーカー	ALTERA
データシート
Clock Frequency-Max	472.5 MHz
JESD-30 Code	R-PQFP-G144
JESD-609 Code	e3
Length	20 mm
Moisture Sensitivity Level	3
Number of CLBs	5136
Number of Inputs	94
Number of Logic Cells	5136
Number of Outputs	94
Number of Terminals	144
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	5136 CLBS
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP144,.87SQ,20
Package Shape	RECTANGULAR
Package Style	FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	1.25 V
Supply Voltage-Min	1.15 V
Supply Voltage-Nom	1.2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	20 mm
