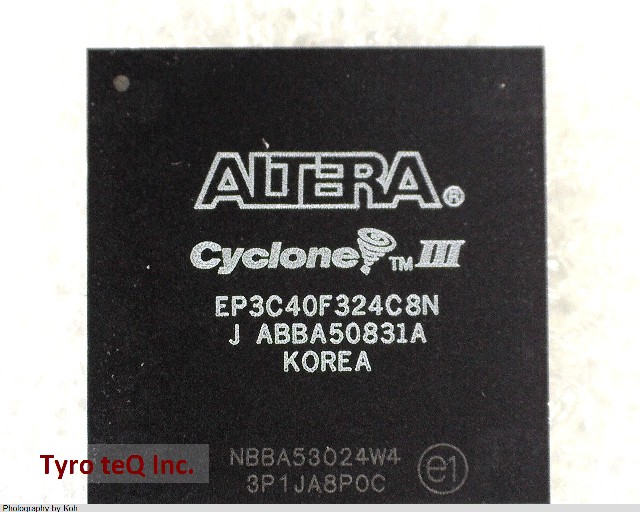

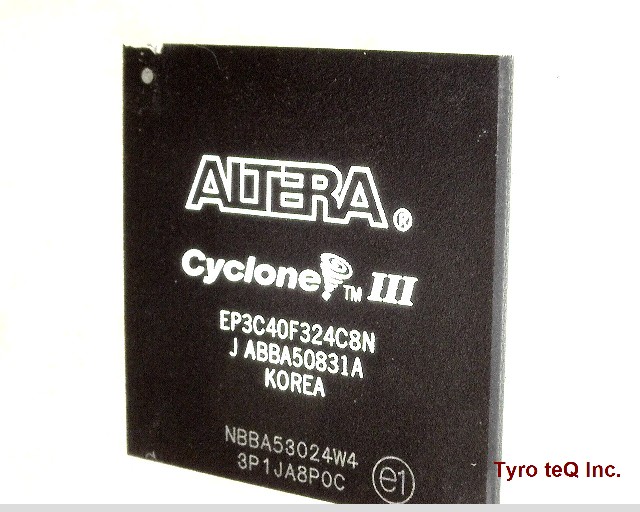

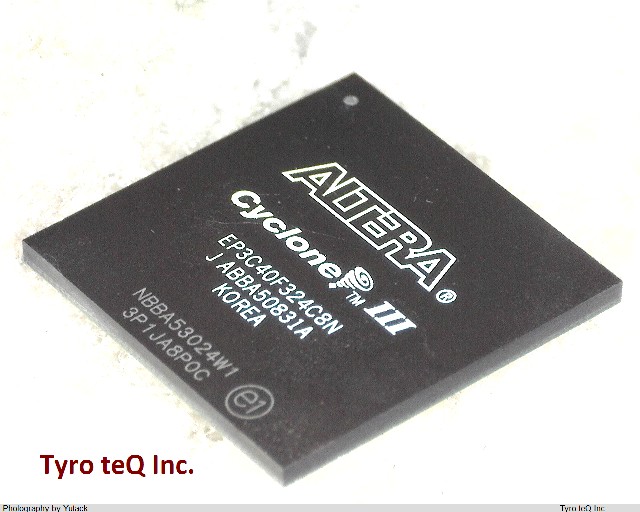

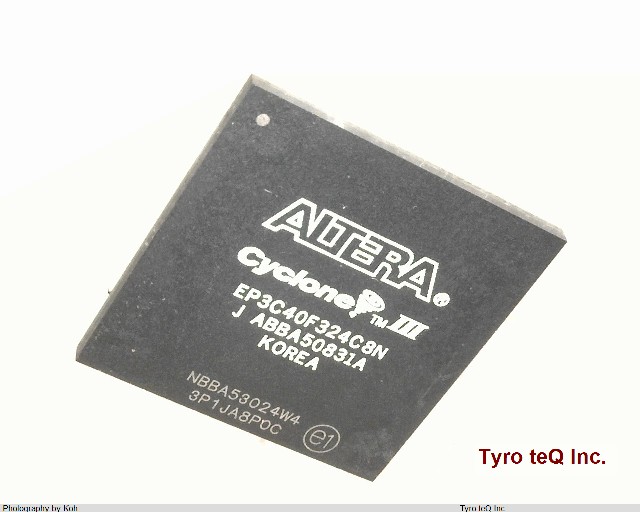

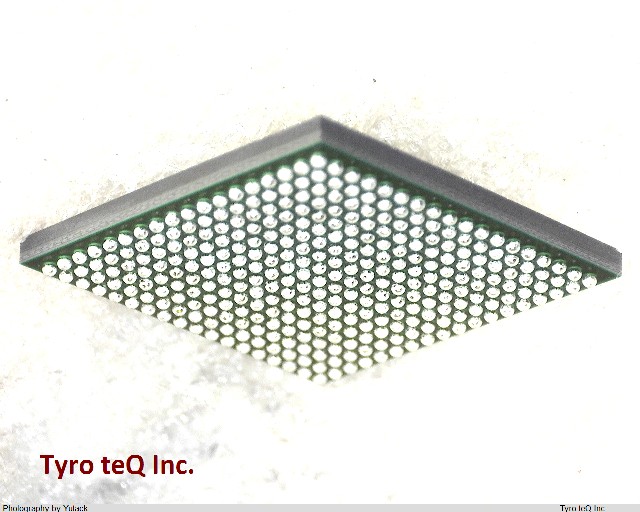

EP3C40F324C8N データシート

Name: EP3C40F324C8N
Brand: ALTERA
SKU: 150038750-0000-0000-0000

EP3C40F324C8N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EP3C40F324C8N の詳細情報

型番	EP3C40F324C8N
メーカー	ALTERA
データシート
Clock Frequency-Max	472.5 MHz
JESD-30 Code	R-PBGA-B324
JESD-609 Code	e1
Length	19 mm
Moisture Sensitivity Level	3
Number of CLBs	39600
Number of Inputs	195
Number of Logic Cells	39600
Number of Outputs	195
Number of Terminals	324
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	39600 CLBS
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA324,18X18,40
Package Shape	RECTANGULAR
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	260
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Qualification Status	Not Qualified
Seated Height-Max	2.2 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	1.25 V
Supply Voltage-Min	1.15 V
Supply Voltage-Nom	1.2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	TIN SILVER COPPER

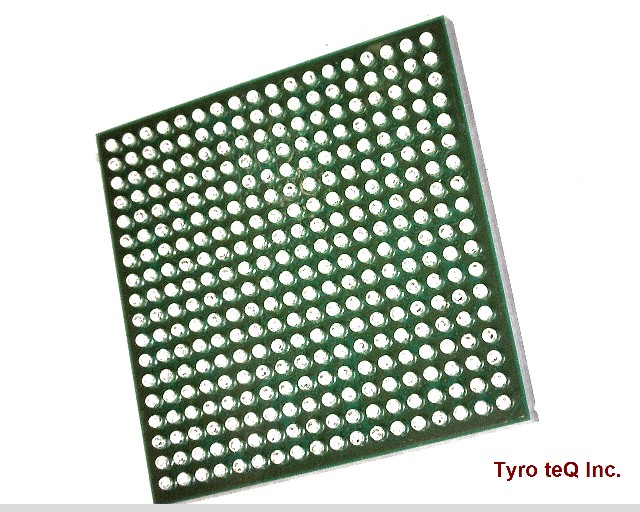

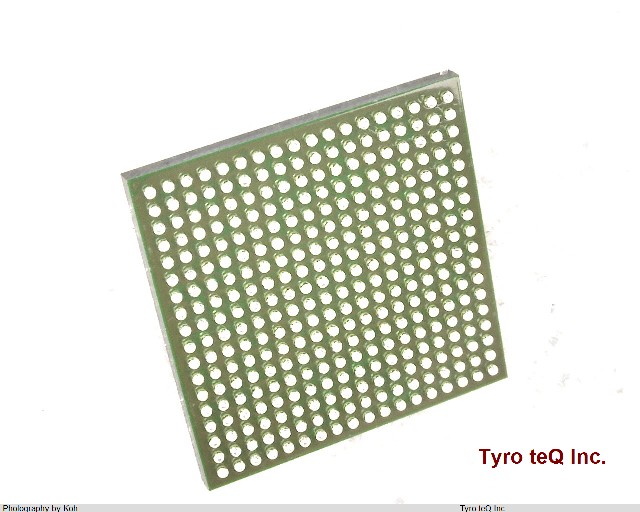

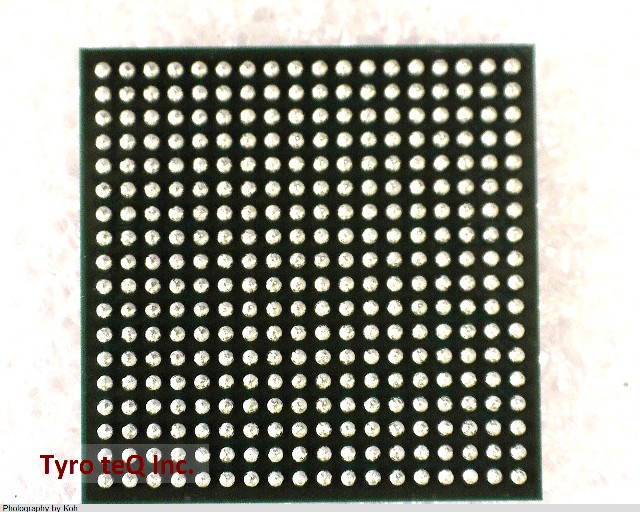

Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	19 mm
