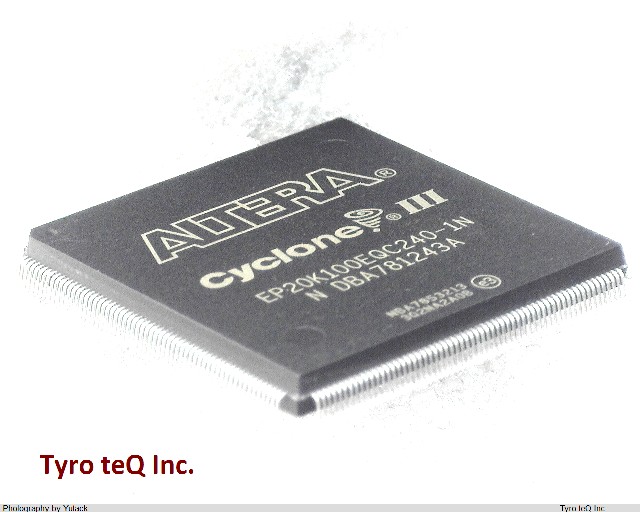

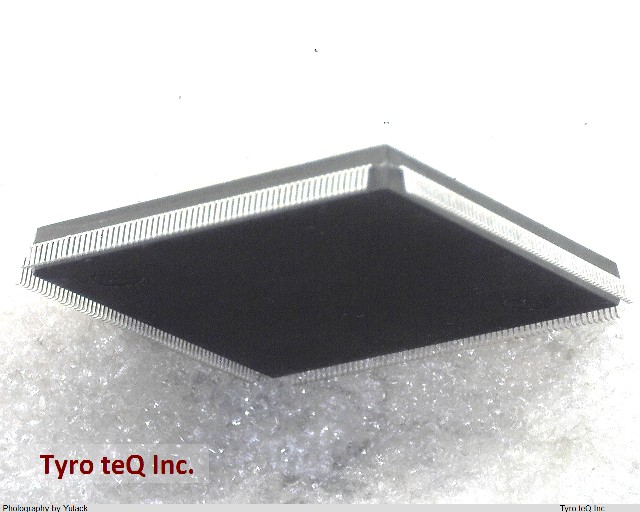

EP20K100EQC2401N データシート

Name: EP20K100EQC2401N
Brand: ALTERA
SKU: 150010632-0000-0000-0000

EP20K100EQC2401N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EP20K100EQC2401N の詳細情報

型番	EP20K100EQC2401N
メーカー	ALTERA
データシート
JESD-30 Code	S-PQFP-G240
JESD-609 Code	e3
Length	32 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	4
Number of I/O Lines	183
Number of Inputs	175
Number of Logic Cells	4160
Number of Outputs	175
Number of Terminals	240
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	4 DEDICATED INPUTS, 183 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Equivalence Code	QFP240,1.3SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	1.8,1.8/3.3 V
Programmable Logic Type	LOADABLE PLD
Propagation Delay	1.73 ns
Qualification Status	Not Qualified
Seated Height-Max	4.1 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	32 mm
