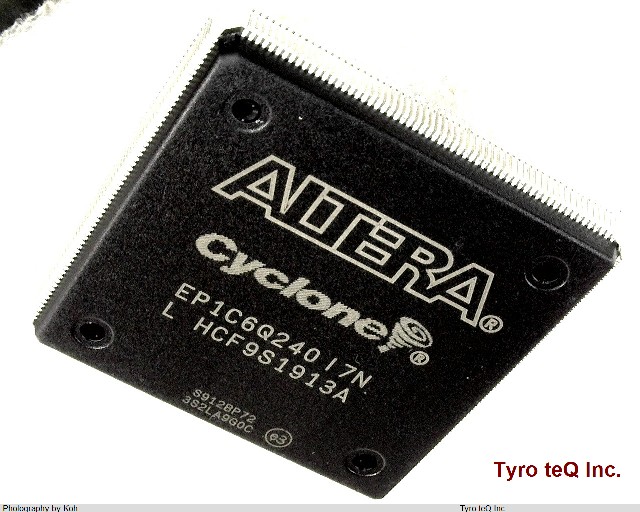

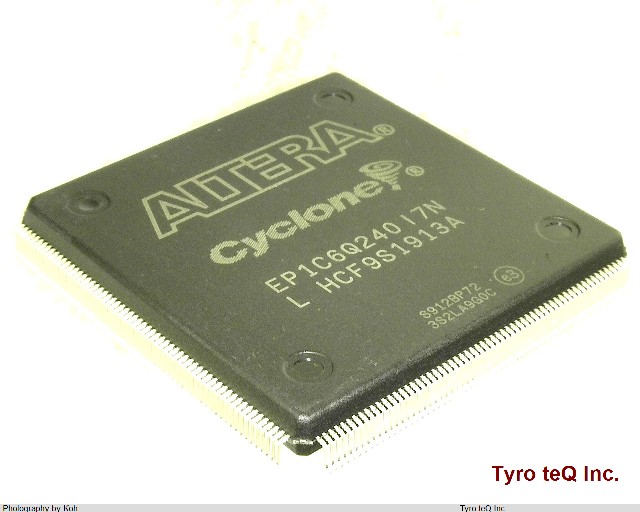

EP1C6Q240I7N データシート

Name: EP1C6Q240I7N
Brand: ALTERA
SKU: 150037717-0000-0000-0000

EP1C6Q240I7N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EP1C6Q240I7N の詳細情報

型番	EP1C6Q240I7N
メーカー	ALTERA
データシート
Clock Frequency-Max	320 MHz
JESD-30 Code	S-PQFP-G240
JESD-609 Code	e3
Length	32 mm
Moisture Sensitivity Level	3
Number of CLBs	598
Number of Inputs	185
Number of Logic Cells	5980
Number of Outputs	185
Number of Terminals	240
Operating Temperature-Max	100 Cel
Operating Temperature-Min	-40 Cel
Organization	598 CLBS
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Equivalence Code	QFP240,1.3SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	1.5,1.5/3.3 V
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Qualification Status	Not Qualified
Seated Height-Max	4.1 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	1.575 V
Supply Voltage-Min	1.425 V
Supply Voltage-Nom	1.5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	32 mm
