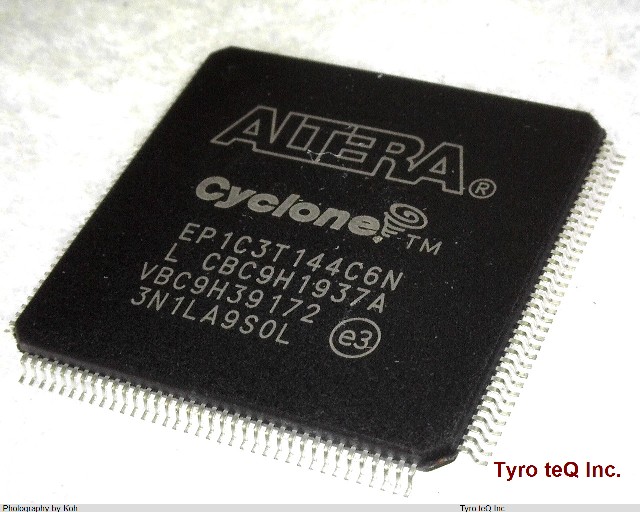

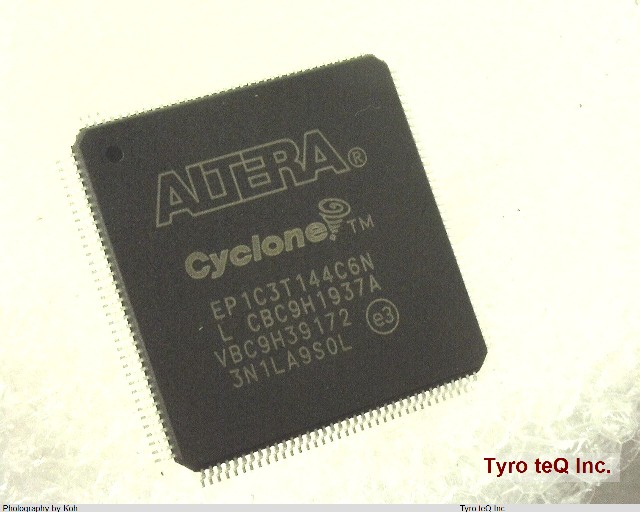

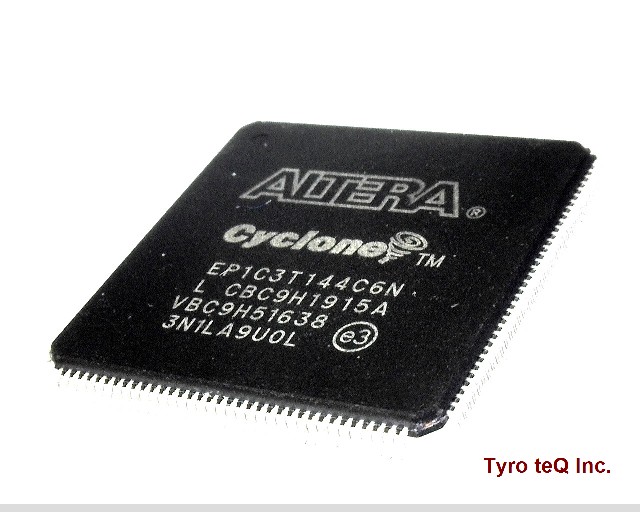

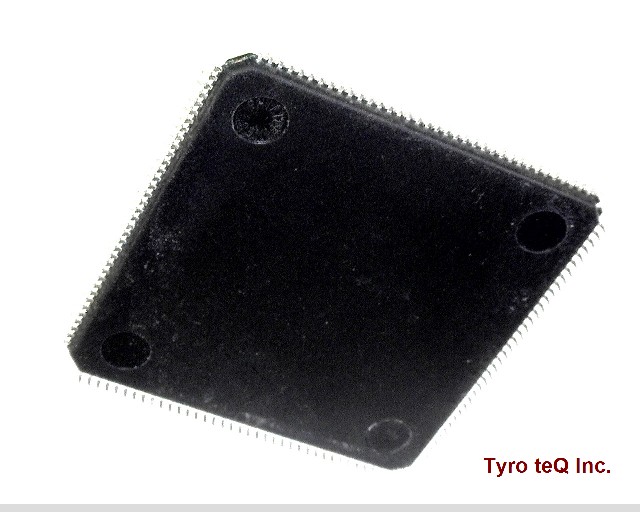

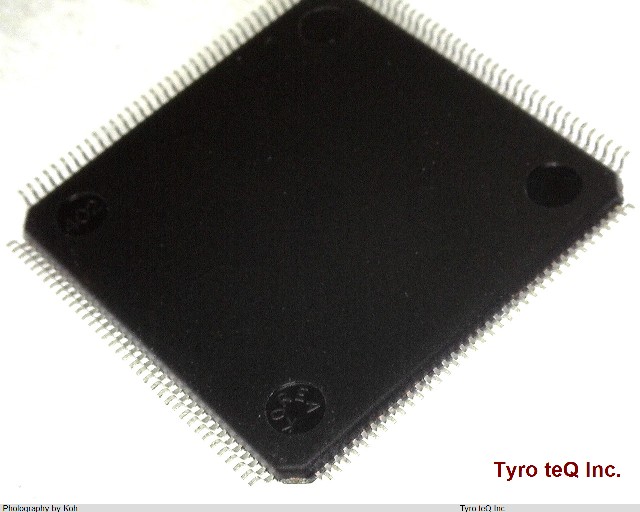

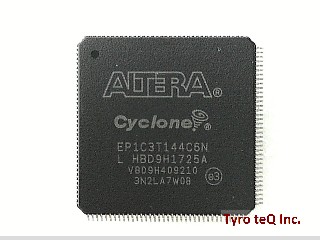

EP1C3T144C6N データシート

Name: EP1C3T144C6N
Brand: ALTERA
SKU: 150004213-0000-0000-0000

EP1C3T144C6N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EP1C3T144C6N の詳細情報

型番	EP1C3T144C6N
メーカー	ALTERA
データシート
Clock Frequency-Max	405 MHz
JESD-30 Code	S-PQFP-G144
JESD-609 Code	e3
Length	20 mm
Moisture Sensitivity Level	3
Number of CLBs	291
Number of Inputs	104
Number of Logic Cells	2910
Number of Outputs	104
Number of Terminals	144
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	291 CLBS
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP144,.87SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.5,1.5/3.3 V
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	1.575 V
Supply Voltage-Min	1.425 V
Supply Voltage-Nom	1.5 V
Surface Mount	YES
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	20 mm
