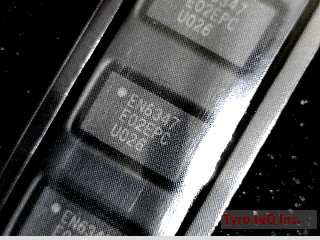

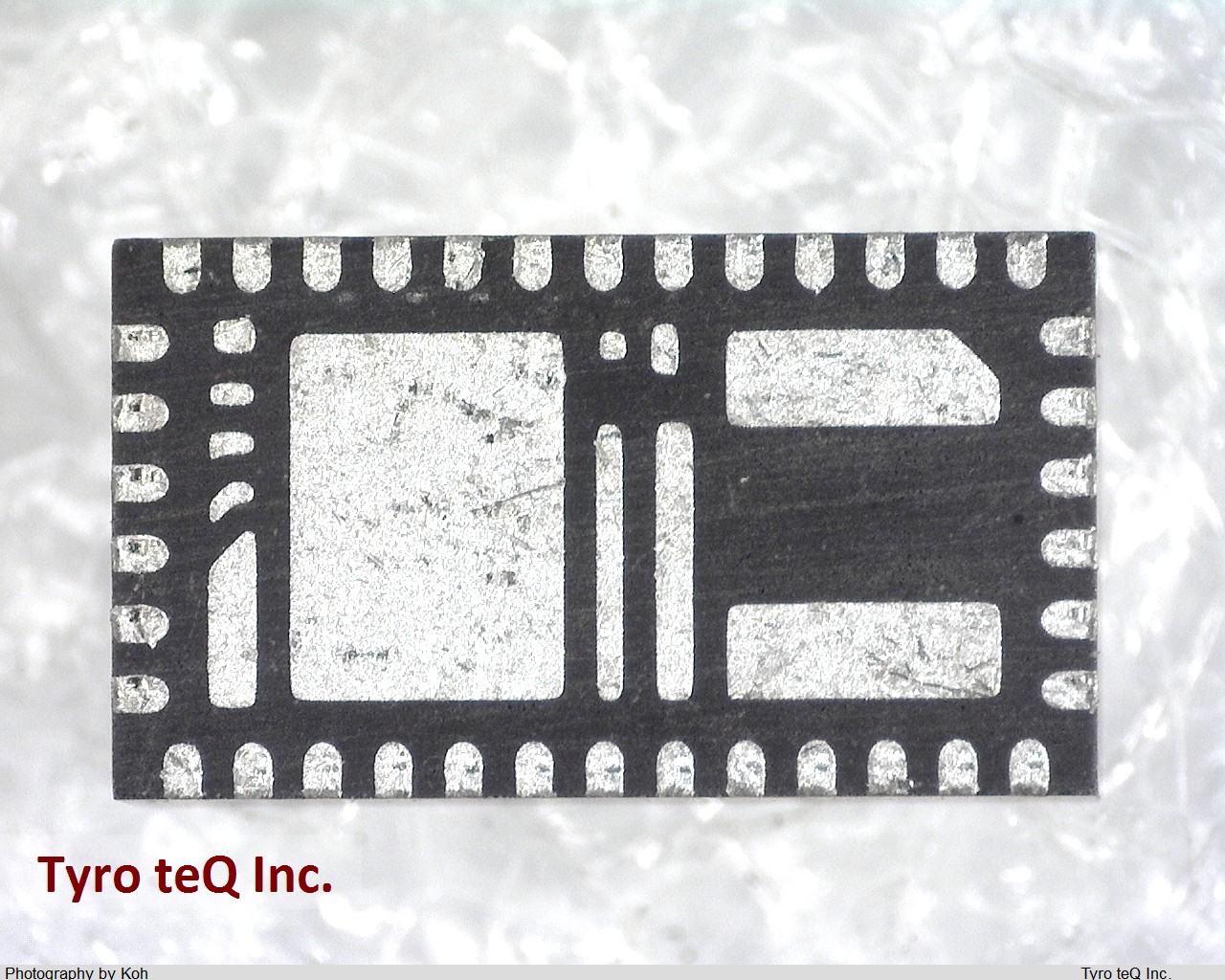

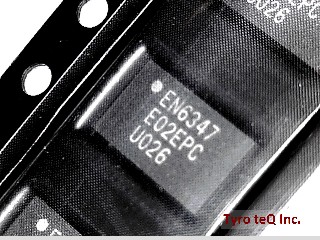

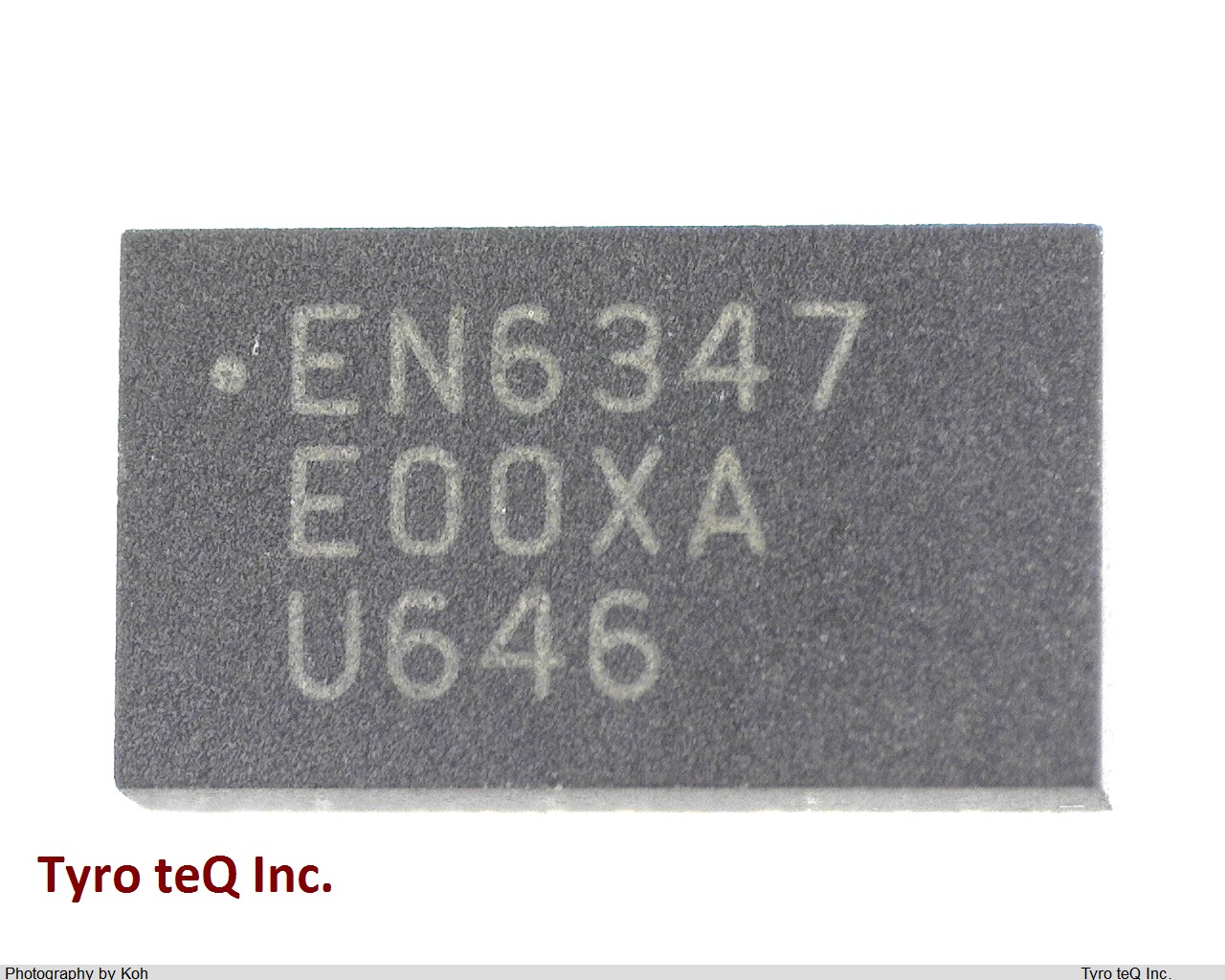

EN6347QI データシート

Name: EN6347QI
Brand: ALTERA
SKU: 150181704-0000-0000-0000

EN6347QI - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EN6347QI の詳細情報

型番	EN6347QI
メーカー	ALTERA
データシート
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.75 TO 6.24V; ALSO REQUIRE PFM CONTROL TECHNIQUE
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	6.6 V
Input Voltage-Min	2.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-XQCC-N38
JESD-609 Code	e3
Length	7 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	38
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	4 A
Output Voltage-Nom	1.2 V
Package Body Material	UNSPECIFIED
Package Code	HQCCN
Package Equivalence Code	LCC38,.16X.28,20
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	3000 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	10
Width	4 mm
