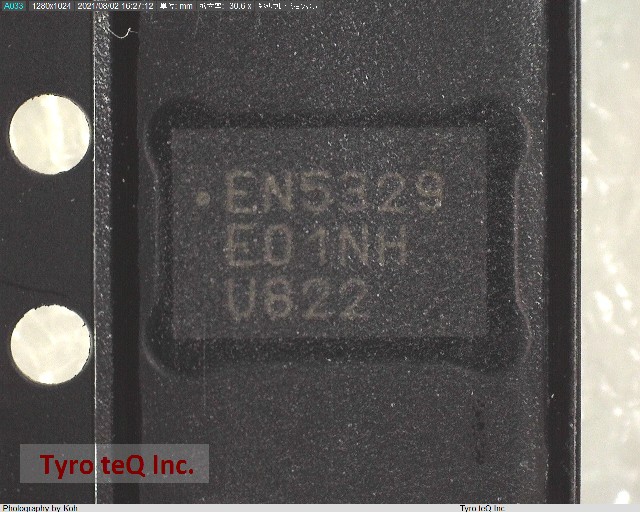

EN5329QI データシート

Name: EN5329QI
Brand: ALTERA
SKU: 150174849-0000-0000-0000

EN5329QI - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EN5329QI の詳細情報

型番	EN5329QI
メーカー	ALTERA
データシート
Additional Feature	OUTPUT VOLTAGE RANGE FROM 0.6 V TO 4.9 V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.4 V
Input Voltage-Nom	5 V
JESD-30 Code	R-XQCC-N24
Length	6 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	UNSPECIFIED
Package Code	HQCCN
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG Meter
Seated Height-Max	1.15 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	3200 kHz
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Width	4 mm
