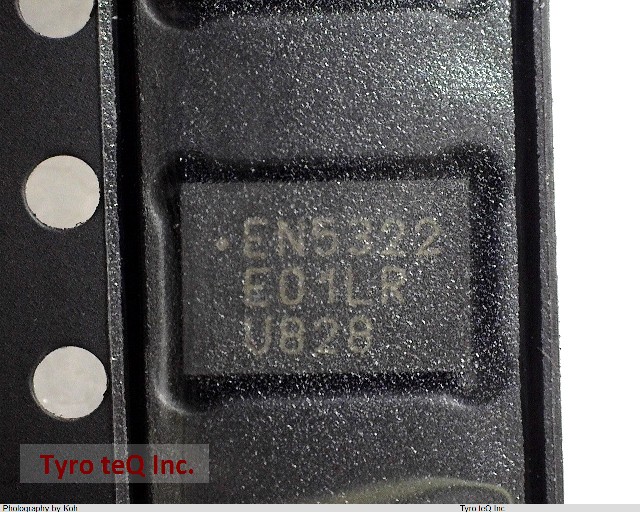

EN5322QI データシート

Name: EN5322QI
Brand: ALTERA
SKU: 150181692-0000-0000-0000

EN5322QI - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EN5322QI の詳細情報

型番	EN5322QI
メーカー	ALTERA
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.4 V
Input Voltage-Nom	5 V
JESD-30 Code	R-XQCC-N24
JESD-609 Code	e3
Length	6 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2 A
Package Body Material	UNSPECIFIED
Package Code	HQCCN
Package Equivalence Code	LCC24,.16X.24,25
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.15 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	4000 kHz
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	4 mm
