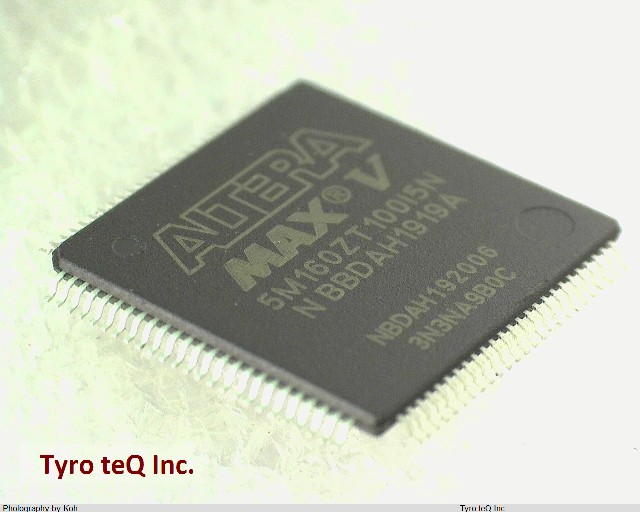

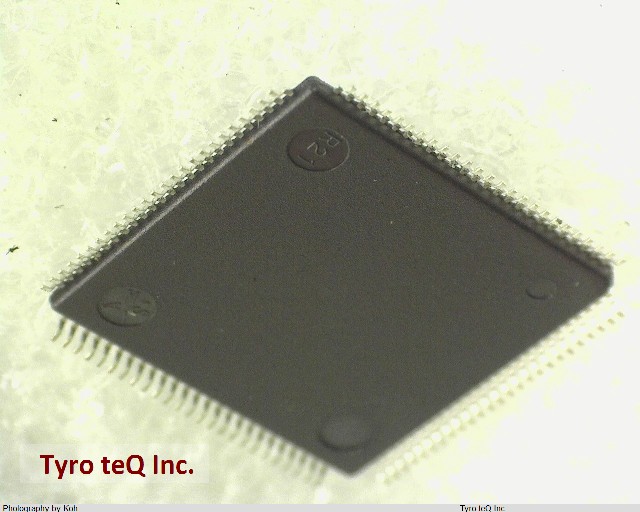

5M160ZT100I5N データシート

Name: 5M160ZT100I5N
Brand: ALTERA
SKU: 60156541-0000-0000-0000

5M160ZT100I5N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

5M160ZT100I5N の詳細情報

型番	5M160ZT100I5N
メーカー	ALTERA
データシート
Additional Feature	YES
Clock Frequency-Max	118.3 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e2
JTAG BST	YES
Length	14 mm
Number of I/O Lines	79
Number of Macro Cells	128
Number of Terminals	100
Operating Temperature-Max	100 Cel
Operating Temperature-Min	-40 Cel
Organization	79 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Equivalence Code	TQFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.2/3.3,1.8 V
Programmable Logic Type	FLASH PLD
Propagation Delay	14 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	14 mm
