5M160ZE64C5N データシート

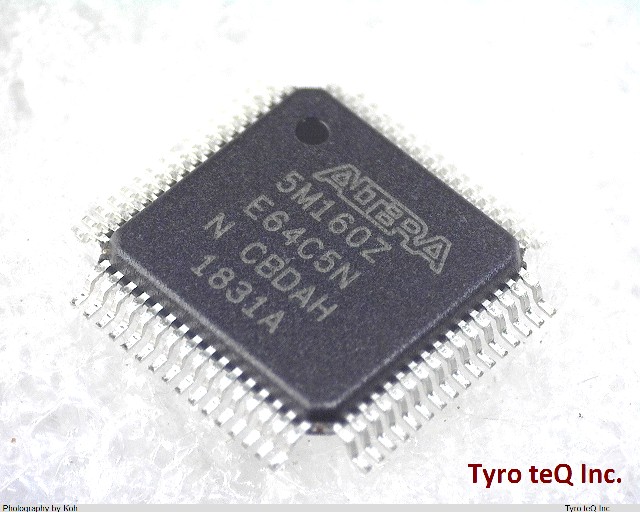

Name: 5M160ZE64C5N
Brand: ALTERA
SKU: 60127954-0000-0000-0000

5M160ZE64C5N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

5M160ZE64C5N の詳細情報

型番	5M160ZE64C5N
メーカー	ALTERA
データシート
Additional Feature	YES
Clock Frequency-Max	118.3 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G64
JESD-609 Code	e3
JTAG BST	YES
Length	7 mm
Number of I/O Lines	54
Number of Macro Cells	128
Number of Terminals	64
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	54 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	HTFQFP
Package Equivalence Code	TQFP64,.35SQ,16
Package Shape	SQUARE
Package Style	FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH Meter
Power Supplies	1.2/3.3,1.8 V
Programmable Logic Type	FLASH PLD
Propagation Delay	14 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Width	7 mm
