5M1270ZT144C5N データシート

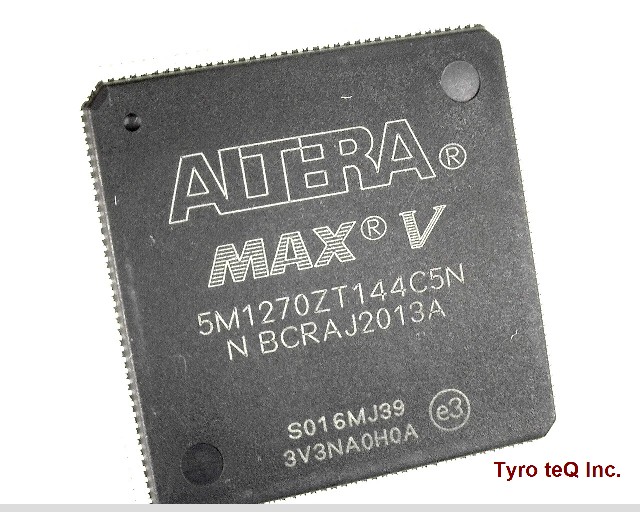

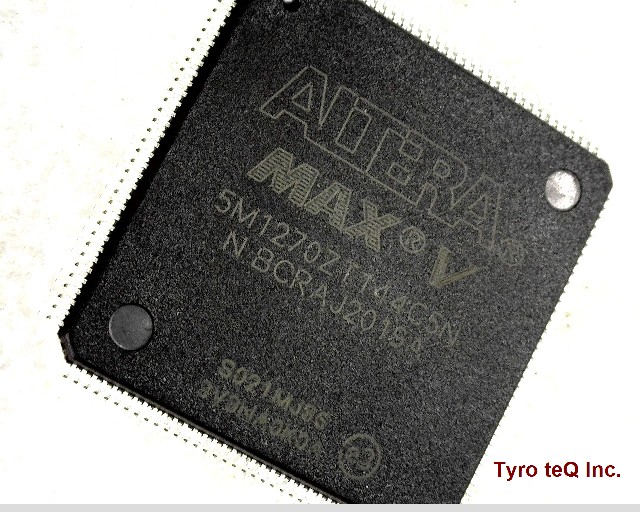

Name: 5M1270ZT144C5N
Brand: ALTERA
SKU: 60135327-0000-0000-0000

5M1270ZT144C5N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

5M1270ZT144C5N の詳細情報

型番	5M1270ZT144C5N
メーカー	ALTERA
データシート
Additional Feature	YES
Clock Frequency-Max	201.1 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G144
JESD-609 Code	e3
JTAG BST	YES
Length	20 mm
Number of I/O Lines	114
Number of Macro Cells	980
Number of Terminals	144
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	114 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP144,.87SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Power Supplies	1.8,1.2/3.3 V
Programmable Logic Type	FLASH PLD
Propagation Delay	10 ns
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	20 mm
