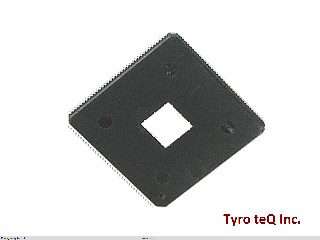

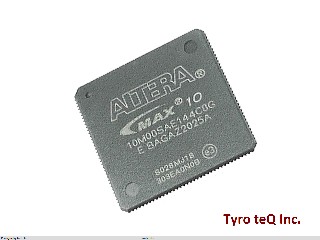

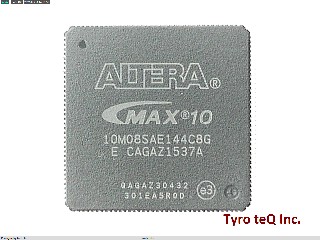

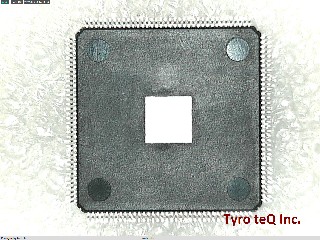

10M08SAE144C8G データシート

Name: 10M08SAE144C8G
Brand: ALTERA
SKU: 20501397-0000-0000-0000

10M08SAE144C8G - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

10M08SAE144C8G の詳細情報

型番	10M08SAE144C8G
メーカー	ALTERA
データシート
Additional Feature	ALSO OPERATES AT 3.3 V NOMINAL SUPPLY
JESD-30 Code	S-PQFP-G144
JESD-609 Code	e3
Length	20 mm
Moisture Sensitivity Level	3
Number of CLBs	500
Number of Inputs	250
Number of Logic Cells	8000
Number of Outputs	250
Number of Terminals	144
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	500 CLBS
Package Body Material	PLASTIC/EPOXY
Package Code	HLFQFP
Package Equivalence Code	HQFP144,.87SQ,20
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Seated Height-Max	1.65 mm
Supply Voltage-Max	3.15 V
Supply Voltage-Min	2.85 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Matte Tin (Sn) - annealed
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	20 mm
