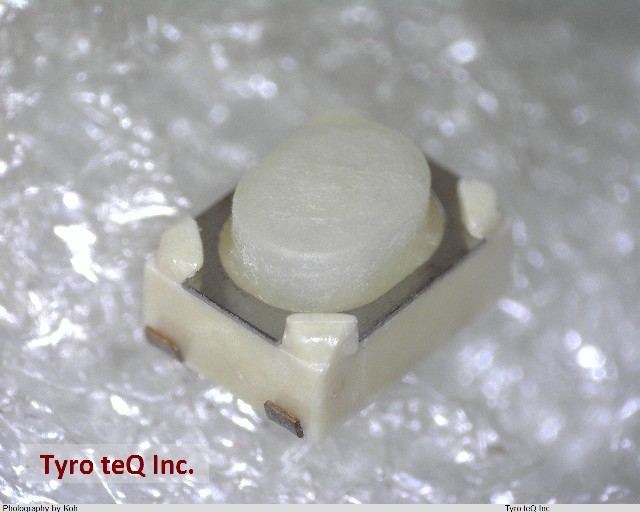

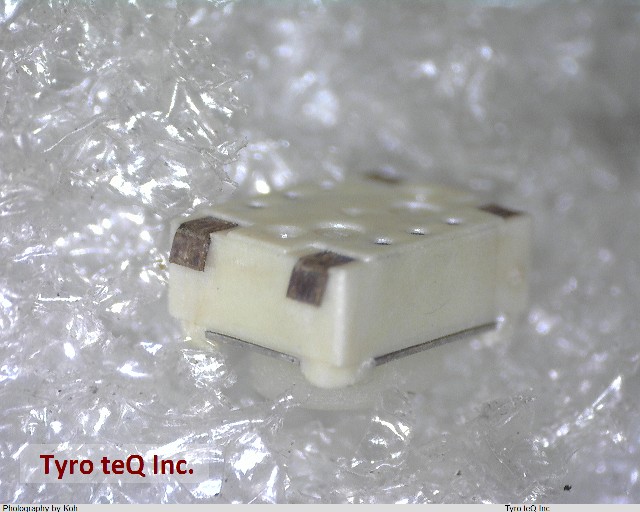

SKRPABE010 データシート

Name: SKRPABE010
Brand: ALPS
SKU: 290001517-0000-0000-0000

SKRPABE010 - ALPS の商品詳細ページです。

２営業日以内に回答いたします

SKRPABE010 の詳細情報

型番	SKRPABE010
メーカー	ALPS
データシート
Actuator Angle	0 deg
Actuator Length	0.028 inch
Actuator Travel	.2032 mm
Actuator Type	SHARP STEM
Additional Feature	ROHS COMPLIANT
Body Breadth	3.2004 inch
Body Height	1.8034 mm
Body Length or Diameter	4.191 mm
Circuit Configuration	1X1
Contact Current(DC)-Max	0.05 A
Contact DC Max Rating R Load	0.05A@16VDC
Contact Resistance	0.5 mohm
Contact Voltage(DC)-Max	16 V
Dielectric Withstand Volts	250VAC V
Electrical Life	100000 Cycle(s)
Insulation Resistance	100000000 ohm
JESD-609 Code	e4
Mounting Feature	SURFACE MOUNT-STRAIGHT
Number of Switches	1
Operating Force-Max	1.57 N
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Packing Method	TR
Solderability	REFLOW
Switch Action	MOMENTARY-TACTILE
Switch Function	SPST
Switch Type	KEYPAD SWITCH
Terminal Finish	Silver (Ag) - with Nickel (Ni) barrier
Termination Type	SOLDER
