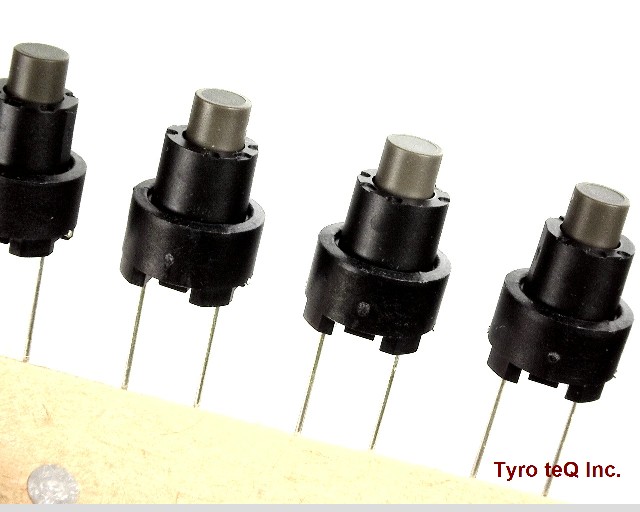

SKRCACD010

Name: SKRCACD010
Brand: ALPS
SKU: 400096315-0000-0000-0000

SKRCACD010 - ALPS の商品詳細ページです。

２営業日以内に回答いたします

SKRCACD010 の詳細情報

型番	SKRCACD010
メーカー	ALPS
Actuator Angle (deg)	0
Actuator Color	GRAY
Actuator Length (inch)	0.118
Actuator Travel (mm)	.254
Actuator Type	SHARP STEM
Body Height (mm)	10.0076
Body Length or Diameter (mm)	8.9916
Circuit Configuration	1X1
Contact Current(DC)-Max (A)	0.05
Contact DC Max Rating R Load	0.05A@12VDC
Contact Resistance (mohm)	500
Contact Voltage(DC)-Max (V)	12
Dielectric Withstand Volts (V)	250VAC
Electrical Life (Cycle(s))	100000
Insulation Resistance (ohm)	100000000
Mounting Feature	THROUGH HOLE-STRAIGHT
Number of Switches	1
Operating Force-Max (N)	1.57
Operating Temperature-Max (Cel)	90
Operating Temperature-Min (Cel)	-40
PCB Hole Count	2
Packing Method	BOX
Switch Action	MOMENTARY-TACTILE
Switch Function	SPST
Switch Type	KEYPAD SWITCH
Termination Type	SOLDER
