AOZ1037PI データシート

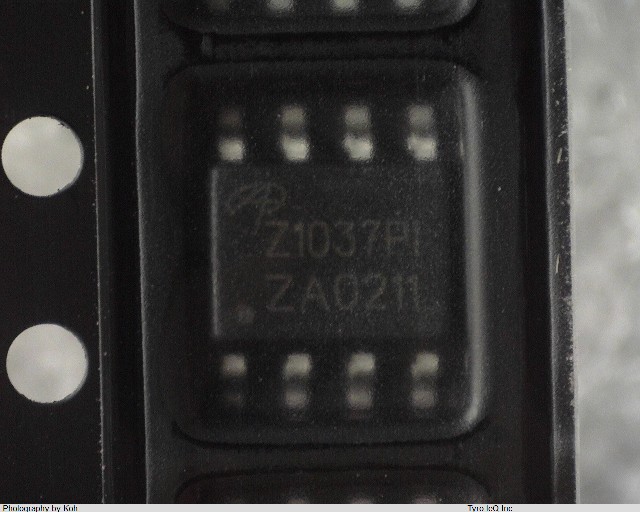

Name: AOZ1037PI
Brand: ALPHA & OMEGA
SKU: 110258768-0000-0000-0000

AOZ1037PI - ALPHA & OMEGA の商品詳細ページです。

２営業日以内に回答いたします

AOZ1037PI の詳細情報

型番	AOZ1037PI
メーカー	ALPHA & OMEGA
データシート
Additional Feature	ADJUSTABLE OUTPUT MODE FROM 0.8 TO 18 VOLT
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	18 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDSO-G8
Length	4.96 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	5 A
Output Voltage-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	HLSOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	1.7 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	600 kHz
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
