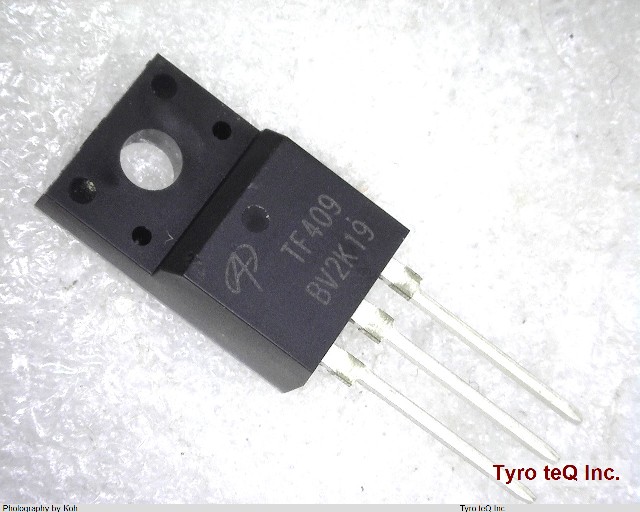

AOTF409
データシート
1
-
- 個
２営業日以内に回答いたします
AOTF409 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AOTF409 |
|---|---|
| メーカー | ALPHA & OMEGA |
| データシート |  |
| Case Connection | ISOLATED |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 60 V |
| Drain Current-Max (ID) | 24 A |
| Drain-source On Resistance-Max | 0.054 ohm |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 168 pF |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 175 Cel |
| Operating Temperature-Min | -55 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT Meter |
| Polarity/Channel Type | P-CHANNEL |
| Power Dissipation-Max (Abs) | 43 W |
| Pulsed Drain Current-Max (IDM) | 60 A |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
| 会社名称 | Alpha and Omega Semiconductor. |
|---|---|
| 所在地 | 475 Oakmead Pkwy Sunnyvale, CA 94085 USA |
| URL | http://www.aosmd.com/ |
