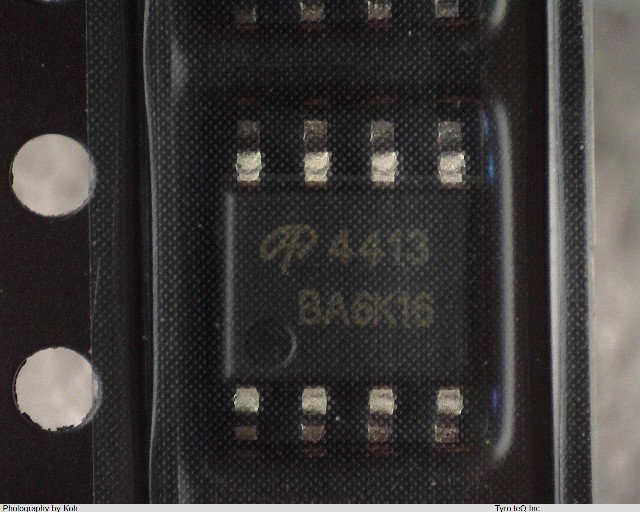

AO4413
データシート
1
-
- 個
２営業日以内に回答いたします
AO4413 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AO4413 |
|---|---|
| メーカー | ALPHA & OMEGA |
| データシート |  |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 30 V |
| Drain Current-Max (Abs) (ID) | 15 A |
| Drain Current-Max (ID) | 15 A |
| Drain-source On Resistance-Max | 0.0085 ohm |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 660 pF |
| JESD-30 Code | R-PDSO-G8 |
| Number of Elements | 1 |
| Number of Terminals | 8 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 Cel |
| Operating Temperature-Min | -55 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Polarity/Channel Type | P-CHANNEL |
| Power Dissipation Ambient-Max | 3 W |
| Power Dissipation-Max (Abs) | 3 W |
| Pulsed Drain Current-Max (IDM) | 80 A |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| 会社名称 | Alpha and Omega Semiconductor. |
|---|---|
| 所在地 | 475 Oakmead Pkwy Sunnyvale, CA 94085 USA |
| URL | http://www.aosmd.com/ |
