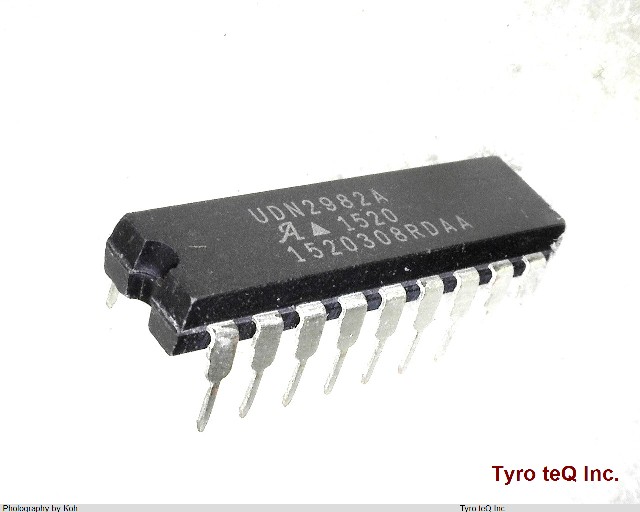

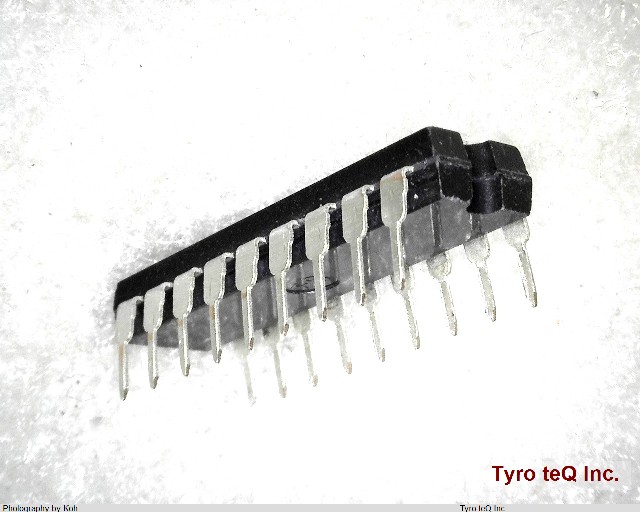

UDN2982A データシート

Name: UDN2982A
Brand: ALLEGRO
SKU: 310095757-0000-0000-0000

UDN2982A - ALLEGRO の商品詳細ページです。

No Image

２営業日以内に回答いたします

UDN2982A の詳細情報

型番	UDN2982A
メーカー	ALLEGRO
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	8
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T18
JESD-609 Code	e0
Length	22.86 mm
Number of Functions	8
Number of Terminals	18
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Characteristics	OPEN-EMITTER
Output Current Flow Direction	SOURCE
Output Current-Max	0.35 A
Output Peak Current Limit-Nom	0.5 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	50 V
Supply Voltage-Min	5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Turn-off Time	10 us
Turn-on Time	2 us
Width	7.62 mm
