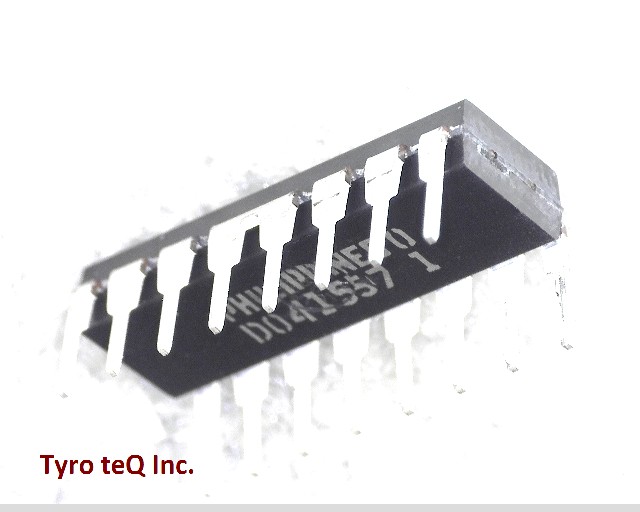

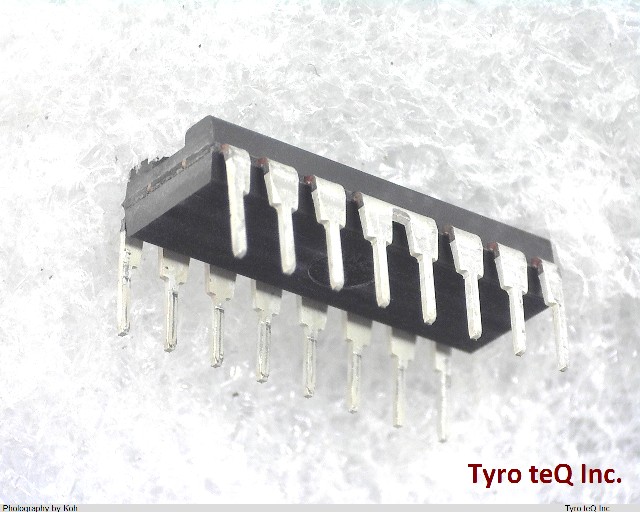

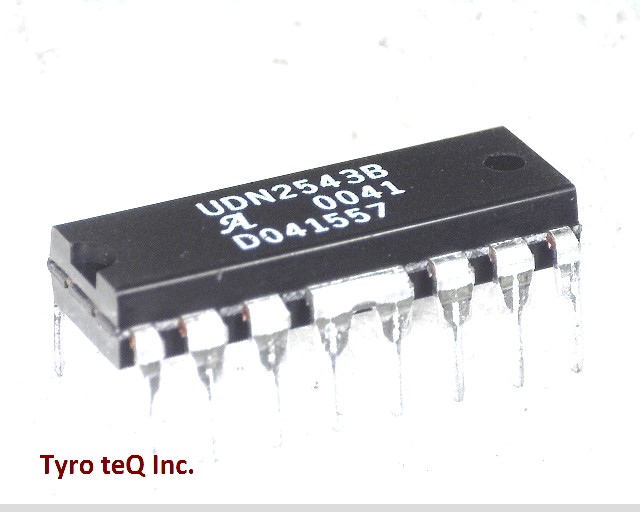

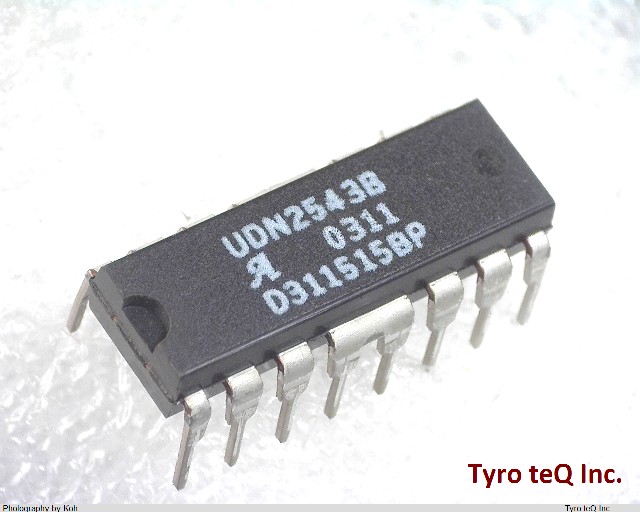

UDN2543B データシート

Name: UDN2543B
Brand: ALLEGRO
SKU: 310026855-0000-0000-0000

UDN2543B - ALLEGRO の商品詳細ページです。

２営業日以内に回答いたします

UDN2543B の詳細情報

型番	UDN2543B
メーカー	ALLEGRO
データシート
Built-in Protections	TRANSIENT; OVER CURRENT; THERMAL
Driver Number of Bits	4
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.175 mm
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Characteristics	OPEN-COLLECTOR
Output Current Flow Direction	SINK
Output Current-Max	0.7 A
Output Peak Current Limit-Nom	1 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
