A3953SB-T データシート

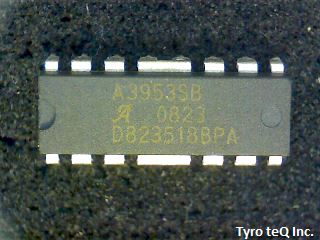

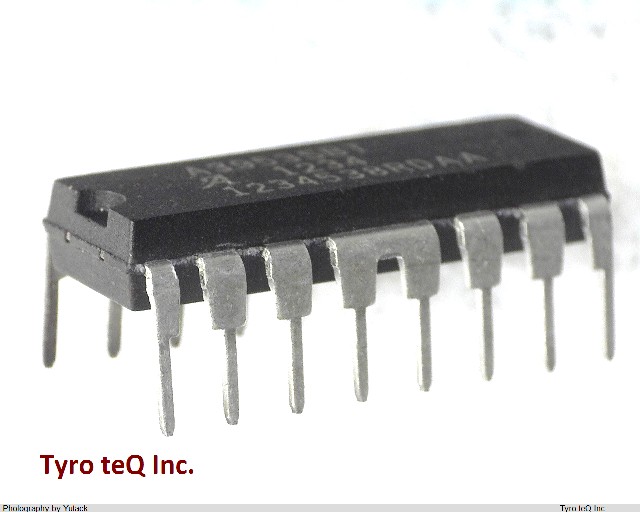

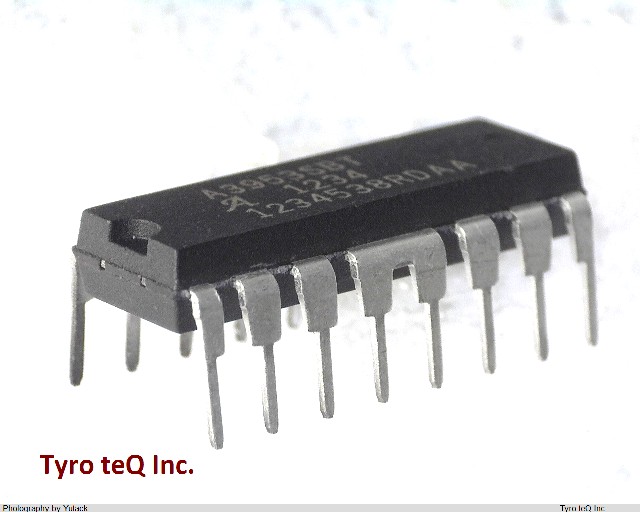

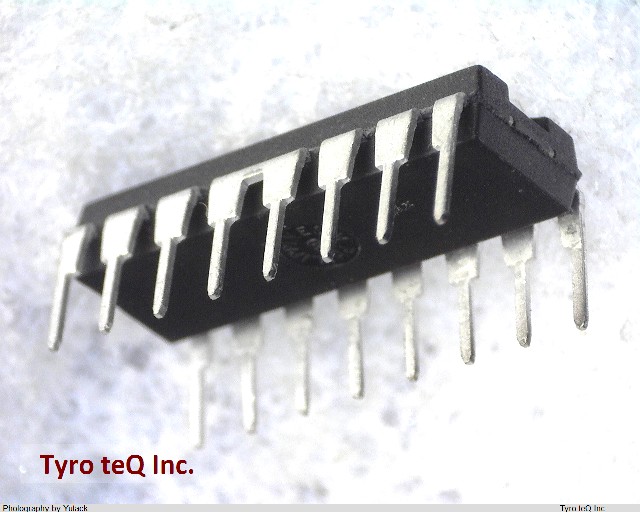

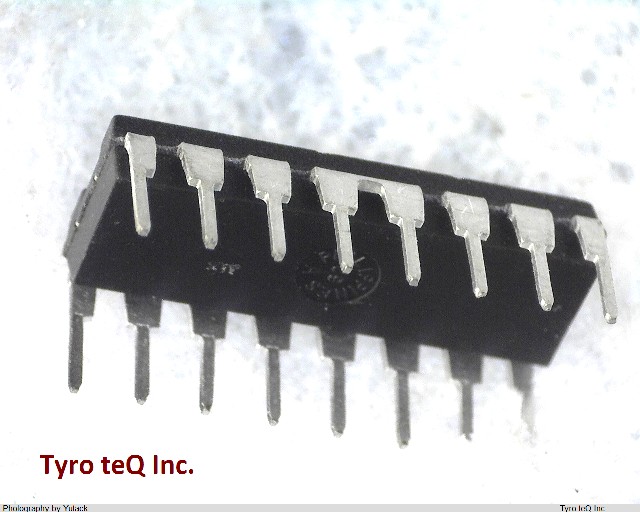

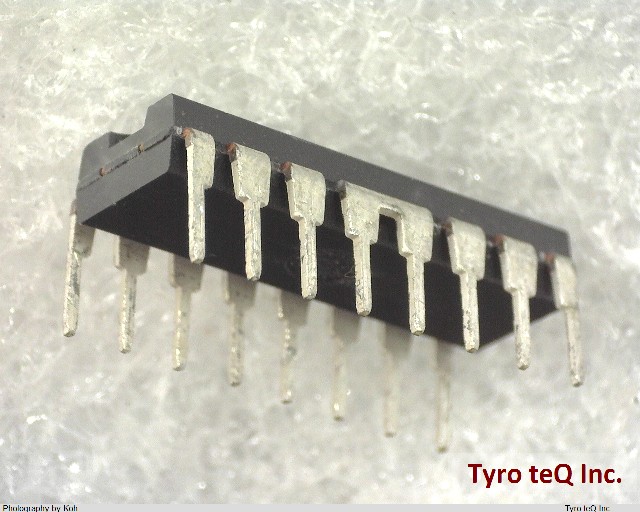

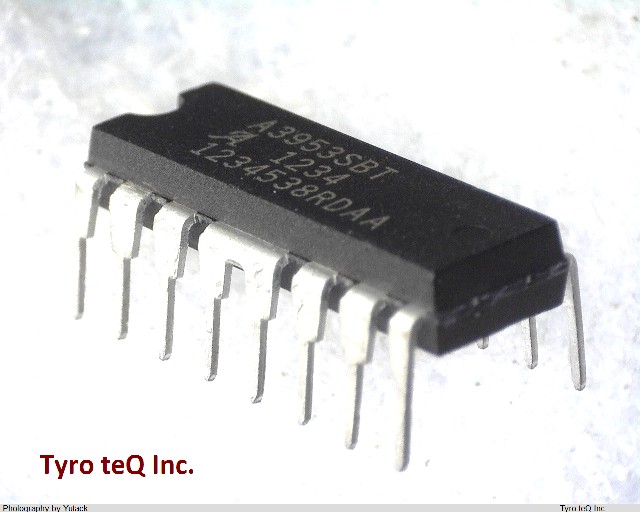

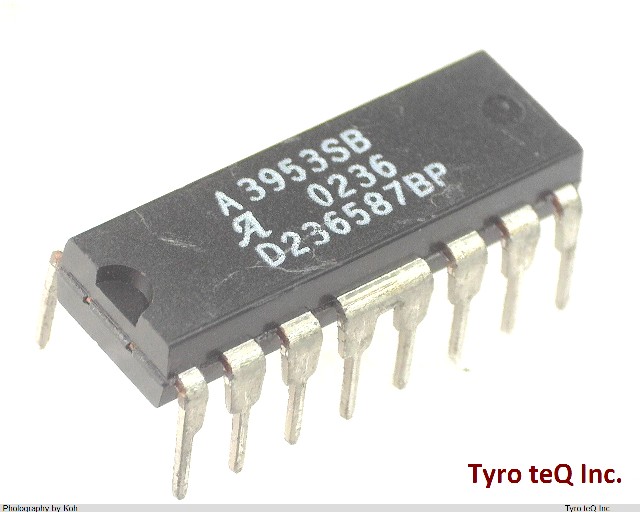

Name: A3953SB-T
Brand: ALLEGRO
SKU: 110240043-0000-0000-0000

A3953SB-T - ALLEGRO の商品詳細ページです。

２営業日以内に回答いたします

A3953SB-T の詳細情報

型番	A3953SB-T
メーカー	ALLEGRO
データシート
Additional Feature	ALSO REQUIRES 3V TO 50V VBB SUPPLY
Analog IC - Other Type	STEPPER MOTOR CONTROLLER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e3
Length	19.05 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Current-Max	1.3 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Motion Control Electronics
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
