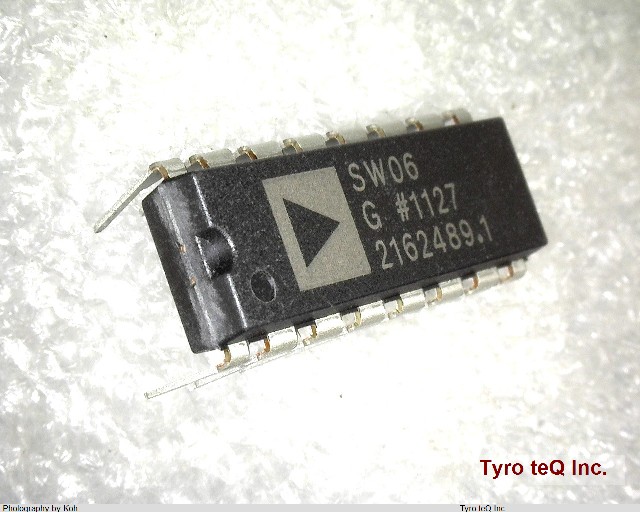

SW06GP データシート

Name: SW06GP
Brand: AD
SKU: 290176905-0000-0000-0000

SW06GP - AD の商品詳細ページです。

２営業日以内に回答いたします

SW06GP の詳細情報

型番	SW06GP
メーカー	AD
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	20.13 mm
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NO/NC V
Number of Channels	1
Number of Functions	4
Number of Terminals	16
Off-state Isolation-Nom	58 dB
On-state Resistance Match-Nom	10 ohm
On-state Resistance-Max (Ron)	150 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	500 ns
Switch-on Time-Max	700 ns
Switching	BREAK-BEFORE-MAKE V
Technology	BIMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	7.62 mm
