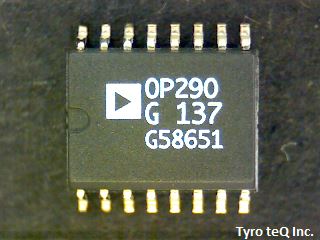

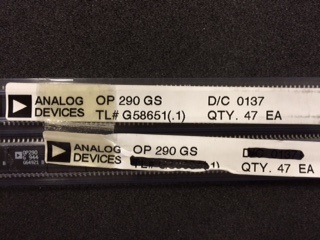

OP290GS データシート

Name: OP290GS
Brand: AD
SKU: 250014295-0000-0000-0000

OP290GS - AD の商品詳細ページです。

２営業日以内に回答いたします

OP290GS の詳細情報

型番	OP290GS
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.025 uA
Bias Current-Max (IIB) @25C	0.025 uA
Common-mode Reject Ratio-Min	80 dB
Common-mode Reject Ratio-Nom	110 dB
Frequency Compensation	NO
Input Offset Voltage-Max	750 uV
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Low-Offset	YES
Micropower	YES
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	220
Power Supplies	+-1.5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Slew Rate-Min	0.005 V/us
Slew Rate-Nom	0.012 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.06 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	20 kHz
Voltage Gain-Min	40000
Width	7.5 mm
