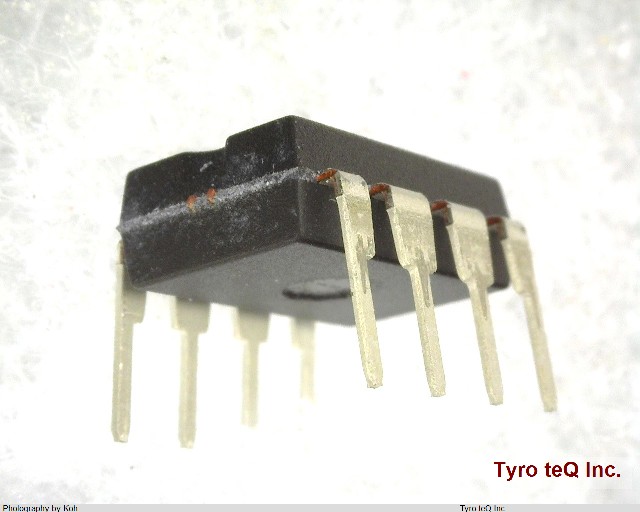

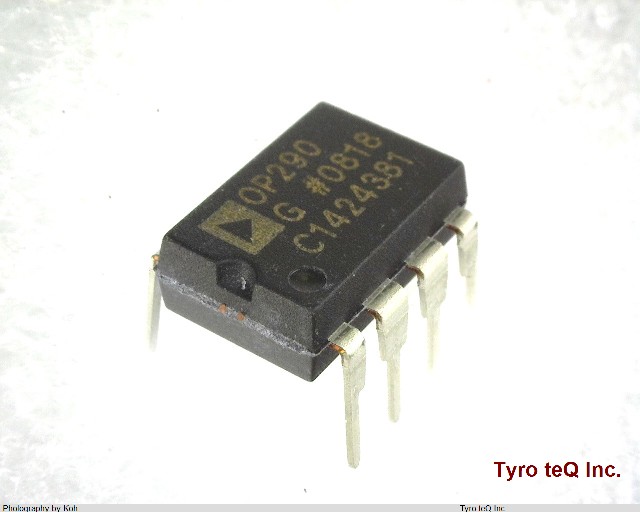

OP290GPZ データシート

Name: OP290GPZ
Brand: AD
SKU: 250006176-0000-0000-0000

OP290GPZ - AD の商品詳細ページです。

２営業日以内に回答いたします

OP290GPZ の詳細情報

型番	OP290GPZ
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.025 uA
Bias Current-Max (IIB) @25C	0.025 uA
Common-mode Reject Ratio-Min	80 dB
Common-mode Reject Ratio-Nom	110 dB
Frequency Compensation	NO
Input Offset Voltage-Max	750 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.27 mm
Low-Offset	YES
Micropower	YES
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	+-1.5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Slew Rate-Min	0.005 V/us
Slew Rate-Nom	12000 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.06 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Unity Gain BW-Nom	20 kHz
Voltage Gain-Min	100000
Width	7.62 mm
