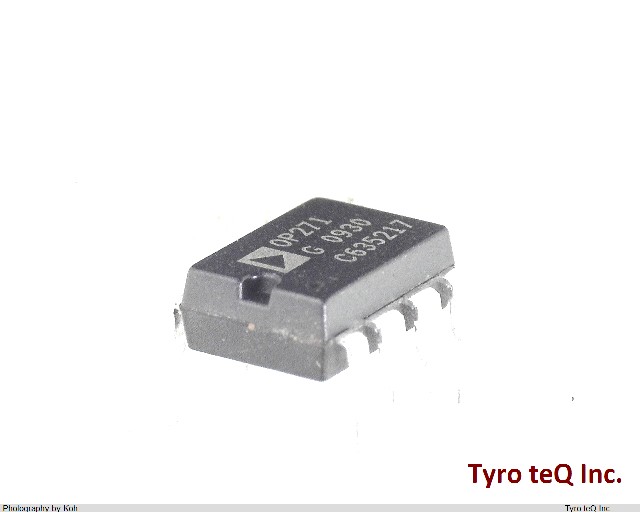

OP271GP データシート

Name: OP271GP
Brand: AD
SKU: 250029865-0000-0000-0000

OP271GP - AD の商品詳細ページです。

２営業日以内に回答いたします

OP271GP の詳細情報

型番	OP271GP
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.08 uA
Bias Current-Max (IIB) @25C	0.06 uA
Common-mode Reject Ratio-Min	90 dB
Common-mode Reject Ratio-Nom	100 dB
Frequency Compensation	YES
Input Offset Voltage-Max	700 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Low-Offset	YES
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.44 mm
Slew Rate-Min	5.5 V/us
Slew Rate-Nom	8.5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	7.2 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	5000 kHz
Voltage Gain-Min	90000
Width	7.62 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
