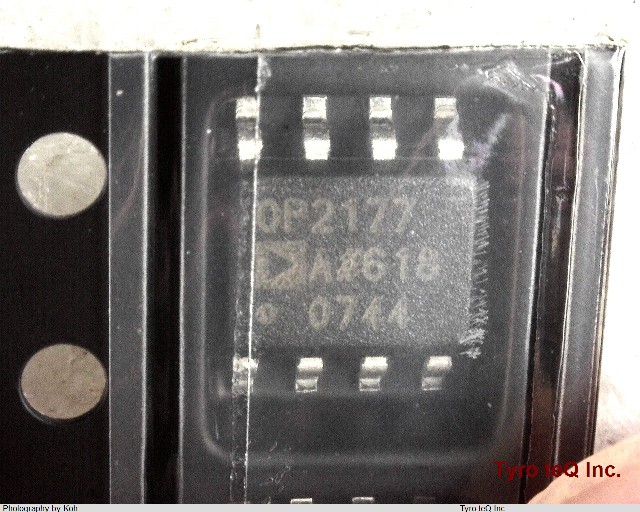

OP2177ARZ-REEL7 データシート

Name: OP2177ARZ-REEL7
Brand: AD
SKU: 250001576-0000-0000-0000

OP2177ARZ-REEL7 - AD の商品詳細ページです。

２営業日以内に回答いたします

OP2177ARZ-REEL7 の詳細情報

型番	OP2177ARZ-REEL7
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.002 uA
Common-mode Reject Ratio-Nom	125 dB
Frequency Compensation	YES
Input Offset Voltage-Max	100 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Low-Bias	NO
Low-Offset	YES
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-5/+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Nom	0.7 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.2 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	1300 kHz
Voltage Gain-Min	1000000
Wideband	NO
Width	3.9 mm
