MUX08FS データシート

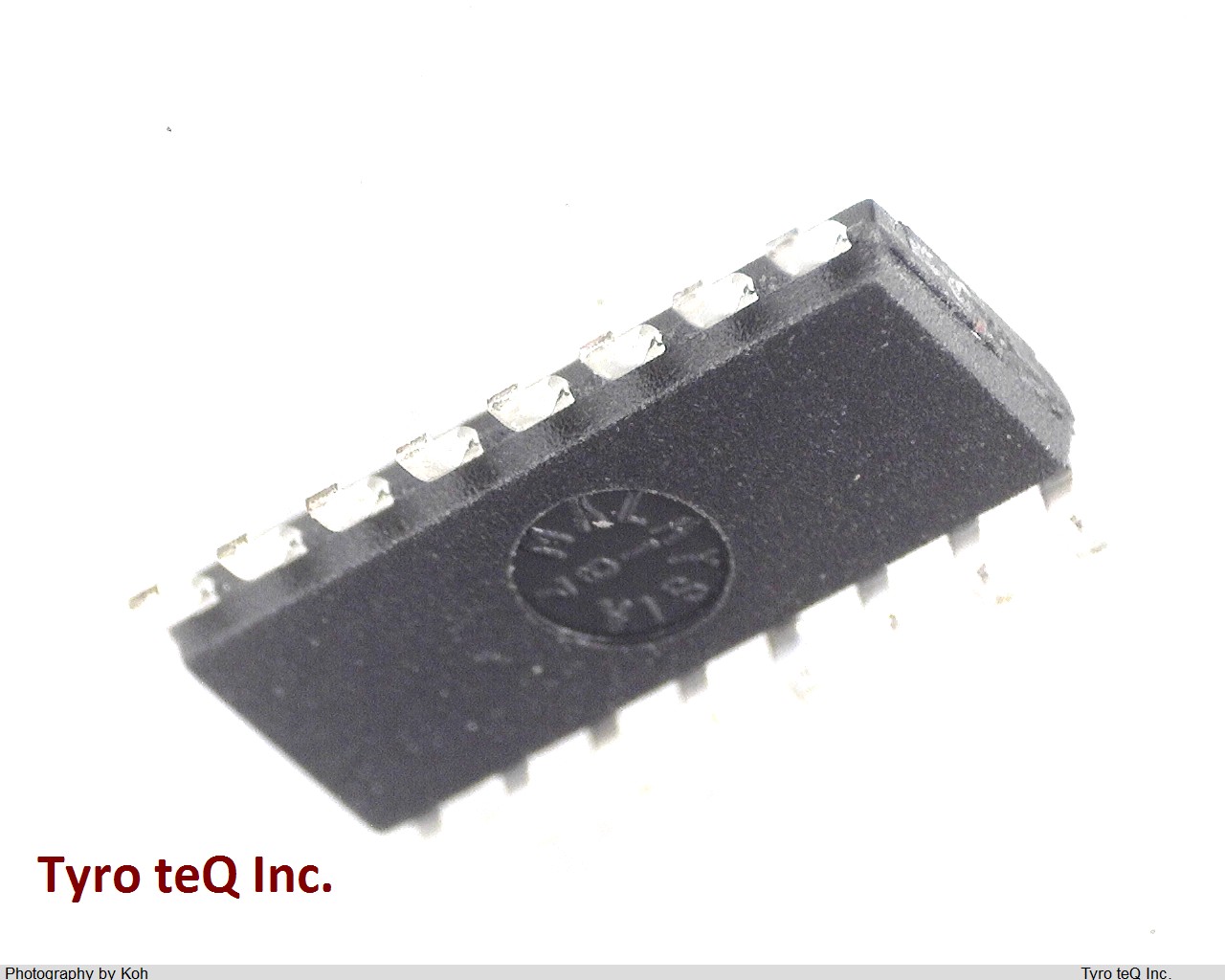

Name: MUX08FS
Brand: AD
SKU: 230325831-0000-0000-0000

MUX08FS - AD の商品詳細ページです。

２営業日以内に回答いたします

MUX08FS の詳細情報

型番	MUX08FS
メーカー	AD
データシート
Additional Feature	OVERVOLTAGE PROTECTION
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NO V
Number of Channels	8
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	60 dB
On-state Resistance Match-Nom	9 ohm
On-state Resistance-Max (Ron)	400 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	COMMON OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	15 mA
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Switch-off Time-Max	400 ns
Switch-on Time-Max	2000 ns
Switching	BREAK-BEFORE-MAKE V
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
