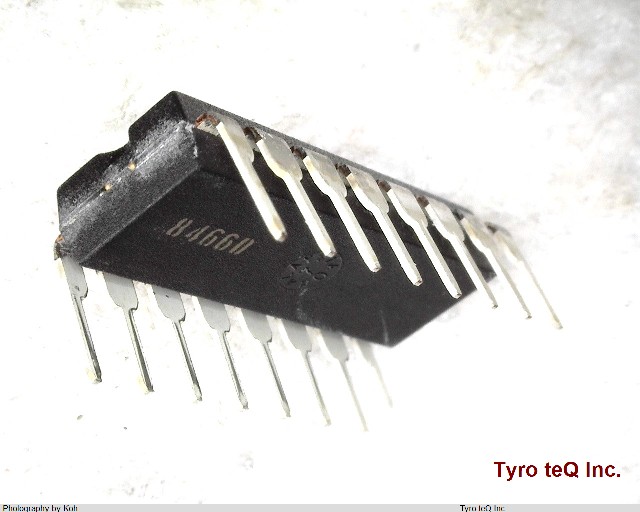

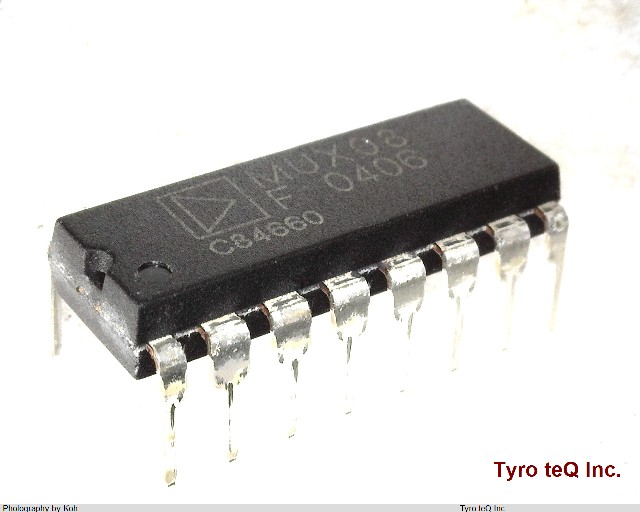

MUX08FP データシート

Name: MUX08FP
Brand: AD
SKU: 230325829-0000-0000-0000

MUX08FP - AD の商品詳細ページです。

２営業日以内に回答いたします

MUX08FP の詳細情報

型番	MUX08FP
メーカー	AD
データシート
Additional Feature	OVERVOLTAGE PROTECTION
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	20.13 mm
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NO V
Number of Channels	8
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	60 dB
On-state Resistance Match-Nom	27 ohm
On-state Resistance-Max (Ron)	400 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	COMMON OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	15 mA
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	400 ns
Switch-on Time-Max	2000 ns
Switching	BREAK-BEFORE-MAKE V
Technology	JFET
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	7.62 mm
