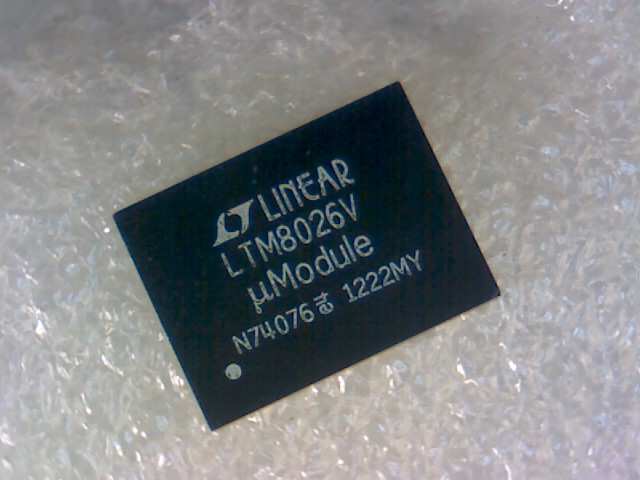

LTM8026IV#PBF データシート

Name: LTM8026IV#PBF
Brand: AD
SKU: 220224097-0000-0000-0000

LTM8026IV#PBF - AD の商品詳細ページです。

２営業日以内に回答いたします

LTM8026IV#PBF の詳細情報

型番	LTM8026IV#PBF
メーカー	AD
データシート
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 1.2 TO 24V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	36 V
Input Voltage-Min	6 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PBGA-N81
JESD-609 Code	e4
Length	15 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	81
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	6.1 A
Package Body Material	PLASTIC/EPOXY
Package Code	LGA
Package Equivalence Code	LGA81,8X11,50
Package Shape	RECTANGULAR
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	2.92 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1000 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Gold (Au)
Terminal Form	NO LEAD
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	11.25 mm
