LTM4601AEV-1#PBF データシート Ad02

LTM4601AEV-1#PBF - AD の商品詳細ページです。

1

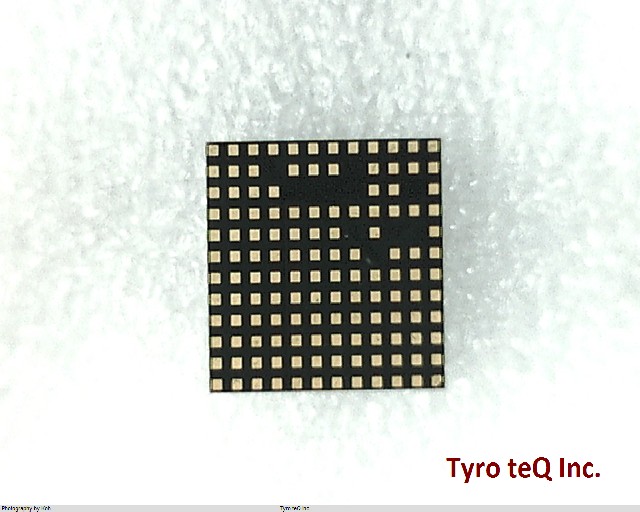

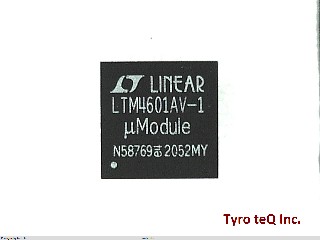

LTM4601AEV-1#PBF
  • LTM4601AEV-1#PBF
  • LTM4601AEV-1#PBF
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LTM4601AEV-1#PBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LTM4601AEV-1#PBF
メーカーAD
データシートProduct_list_pdf
Additional Feature OPERATES IN ADJUSTABLE MODE FROM 0.6V TO 5V
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 20 V
Input Voltage-Min 4.5 V
Input Voltage-Nom 12 V
JESD-30 Code S-XBCC-B133
JESD-609 Code e4
Length 15 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 133
Operating Temperature-Max 85 Cel
Operating Temperature-Min 0 Cel
Output Current-Max 17 A
Package Body Material UNSPECIFIED
Package Code BCC
Package Equivalence Code LGA133,12X12,50
Package Shape SQUARE
Package Style CHIP CARRIER Meter
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Seated Height-Max 2.92 mm
Sub Category Switching Regulator or Controllers
Surface Mount YES
Switcher Configuration PUSH-PULL
Switching Frequency-Max 850 kHz
Temperature Grade OTHER
Terminal Finish Gold (Au)
Terminal Form BUTT
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 15 mm
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
