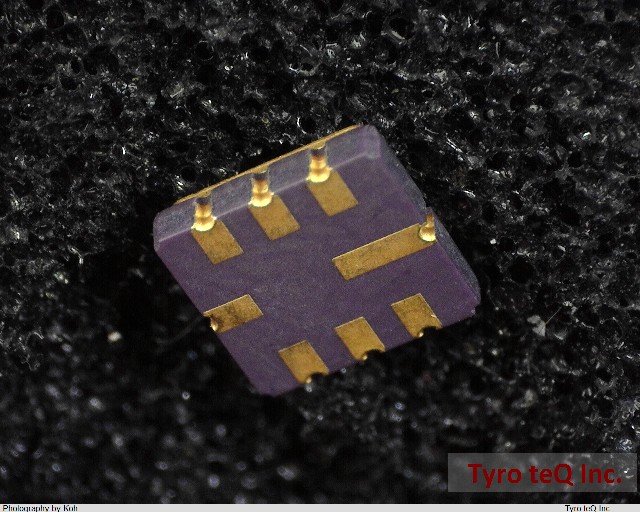

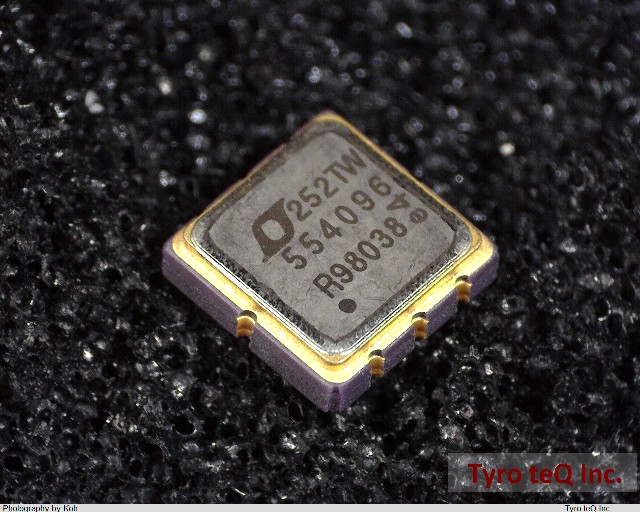

LTC6655BHLS8-4.096#PBF データシート

Name: LTC6655BHLS8-4.096#PBF
Brand: AD
SKU: 220223707-0000-0000-0000

LTC6655BHLS8-4.096#PBF - AD の商品詳細ページです。

２営業日以内に回答いたします

LTC6655BHLS8-4.096#PBF の詳細情報

型番	LTC6655BHLS8-4.096#PBF
メーカー	AD
データシート
Additional Feature	SEATED HT-CALCULATED
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	S-CQCC-N8
Length	5 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	4.097024 V
Output Voltage-Min	4.094976 V
Output Voltage-Nom	4.096 V
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	HQCCN
Package Equivalence Code	LCC8,.2SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.55 mm
Supply Current-Max (Isup)	7.5 mA
Supply Voltage-Max (Vsup)	13.2 V
Supply Voltage-Min (Vsup)	4.296 V
Surface Mount	YES
Technology	CMOS
Temp Coef of Voltage-Max	2 ppm/Cel
Temperature Grade	AUTOMOTIVE
Terminal Form	NO LEAD
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	0.025 %
Width	5 mm
