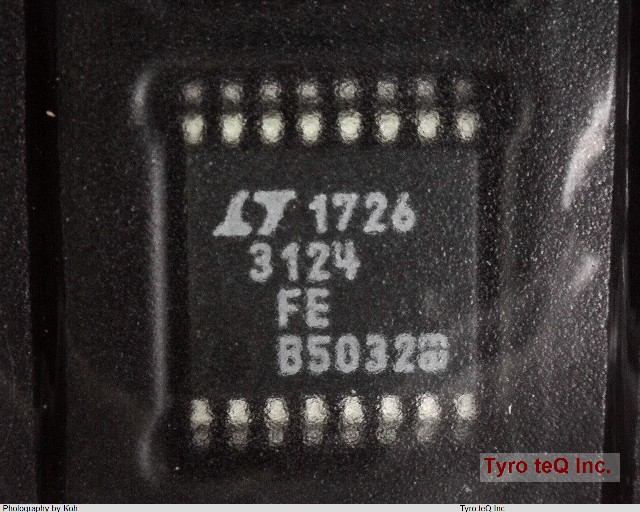

LTC3124EFE#PBF

Name: LTC3124EFE#PBF
Brand: AD
SKU: 400049620-0000-0000-0000

LTC3124EFE#PBF - AD の商品詳細ページです。

２営業日以内に回答いたします

LTC3124EFE#PBF の詳細情報

型番	LTC3124EFE#PBF
メーカー	AD
Additional Feature	OUTPUT VOLTAGE RANGE FROM 2.5 VOLT TO 15 VOLT
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	0.5 V
Input Voltage-Nom	3.6 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	5 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Seated Height-Max	1.1 mm
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	1170 kHz
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	4.4 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
