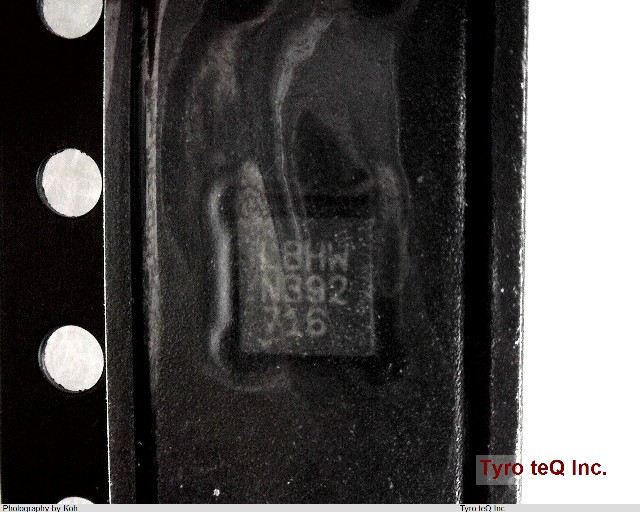

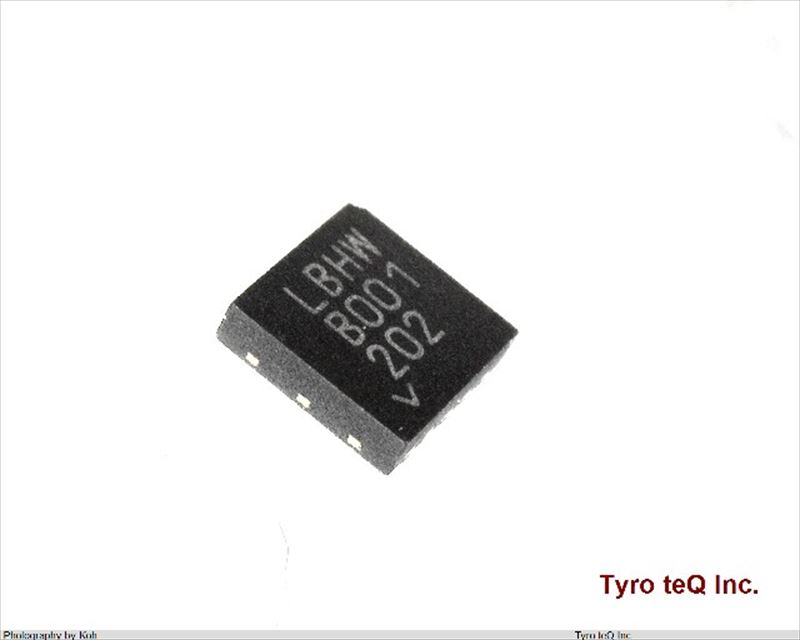

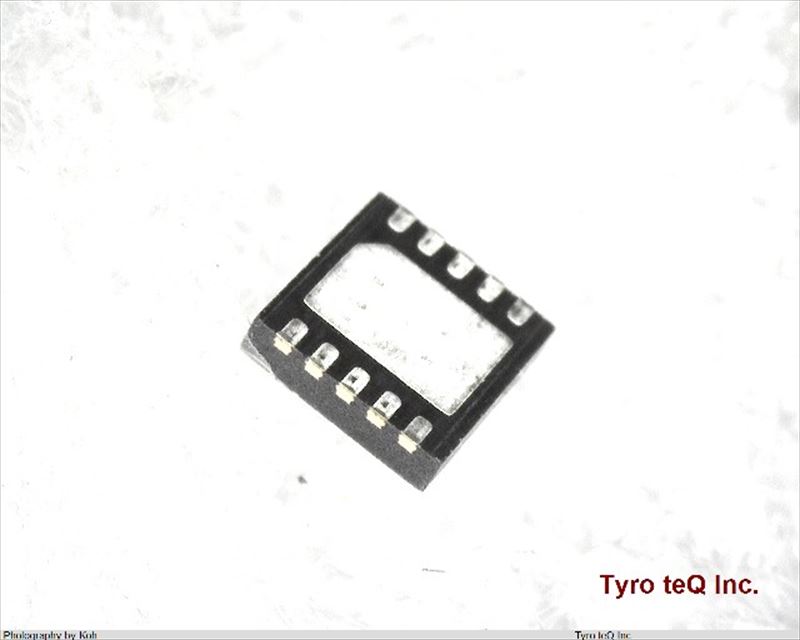

LTC3026EDD#PBF データシート

Name: LTC3026EDD#PBF
Brand: AD
SKU: 400031256-0000-0000-0000

LTC3026EDD#PBF - AD の商品詳細ページです。

２営業日以内に回答いたします

LTC3026EDD#PBF の詳細情報

型番	LTC3026EDD#PBF
メーカー	AD
データシート
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.25 V
Dropout Voltage1-Nom	0.1 V
JESD-30 Code	S-PDSO-N10
JESD-609 Code	e3
Length	3 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	10
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1.5 A
Output Voltage1-Max	2.6 V
Output Voltage1-Min	0.4 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC10,.11,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
