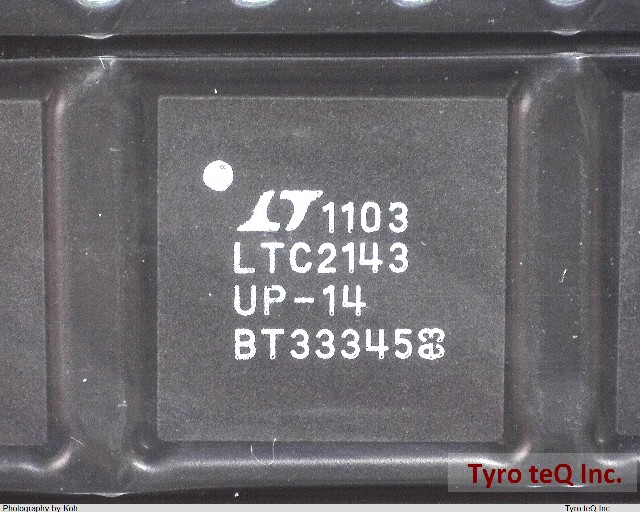

LTC2143IUP-14#PBF データシート

Name: LTC2143IUP-14#PBF
Brand: AD
SKU: 220223597-0000-0000-0000

LTC2143IUP-14#PBF - AD の商品詳細ページです。

２営業日以内に回答いたします

LTC2143IUP-14#PBF の詳細情報

型番	LTC2143IUP-14#PBF
メーカー	AD
データシート
Analog Input Voltage-Max	2 V
Analog Input Voltage-Min	-2 V
Converter Type	ADC, PROPRIETARY METHOD
JESD-30 Code	S-PQCC-N64
JESD-609 Code	e3
Length	9 mm
Linearity Error-Max (EL)	0.0159 %
Moisture Sensitivity Level	1
Number of Analog In Channels	2
Number of Bits	14
Number of Functions	1
Number of Terminals	64
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	OFFSET BINARY, 2'S COMPLEMENT BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC64,.35SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	1.8 V
Qualification Status	Not Qualified
Sample Rate	80 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	0.8 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	9 mm
