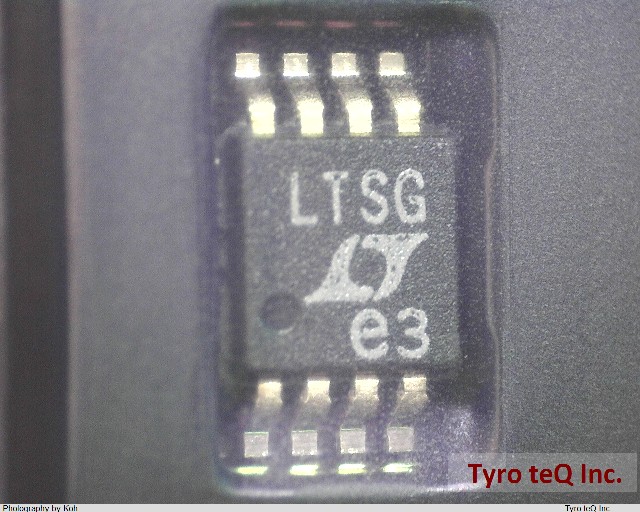

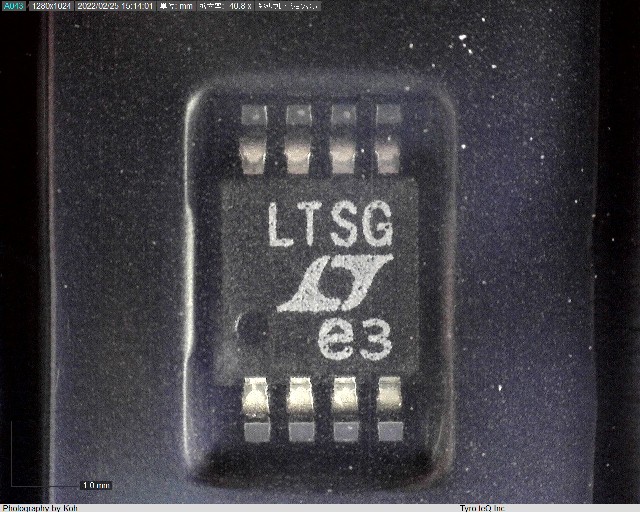

- LTC1693-5CMS8#PBF
LTC1693-5CMS8#PBF
データシート
1
-
- 個
２営業日以内に回答いたします
LTC1693-5CMS8#PBF の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LTC1693-5CMS8#PBF |
|---|---|
| メーカー | AD |
| データシート |  |
| High Side Driver | YES |
| Interface IC Type | BUFFER OR INVERTER BASED MOSFET DRIVER |
| JESD-30 Code | S-PDSO-G8 |
| JESD-609 Code | e3 |
| Length | 3 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Output Peak Current Limit-Nom | 1.7 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.1 mm |
| Supply Voltage-Max | 13.2 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 12 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Turn-off Time | 0.075 us |
| Turn-on Time | 0.075 us |
| Width | 3 mm |
| 会社名称 | アナログ・デバイセズ |
|---|---|
| 設立 | 1965 |
| 所在地 | One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States |
| URL | http://www.analog.com/ |
