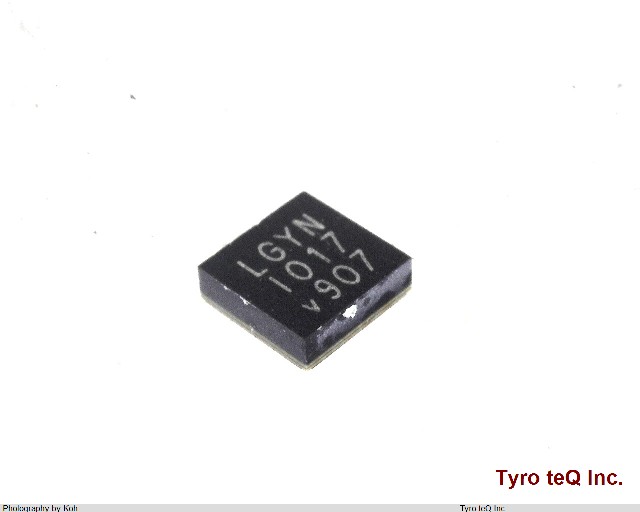

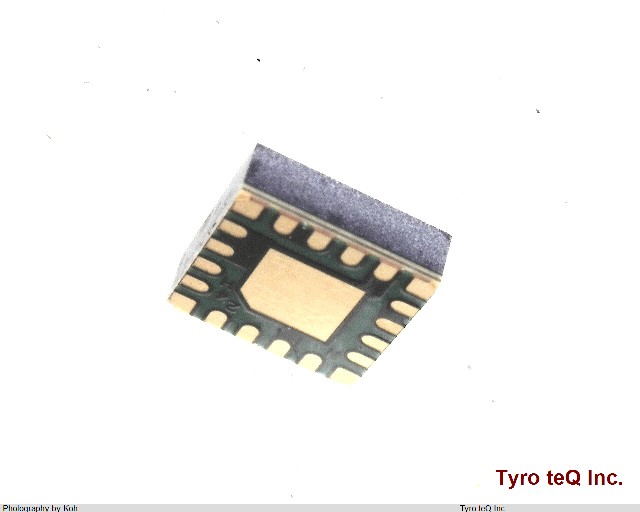

LT8609SEV#PBF データシート

Name: LT8609SEV#PBF
Brand: AD
SKU: 220223675-0000-0000-0000

LT8609SEV#PBF - AD の商品詳細ページです。

２営業日以内に回答いたします

LT8609SEV#PBF の詳細情報

型番	LT8609SEV#PBF
メーカー	AD
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	42 V
Input Voltage-Min	2.7 V
Input Voltage-Nom	6 V
JESD-30 Code	S-XQCC-N16
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	5.7 A
Package Body Material	UNSPECIFIED
Package Code	HQCCN
Package Equivalence Code	LCC16,.12SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.03 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2200 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Gold (Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
