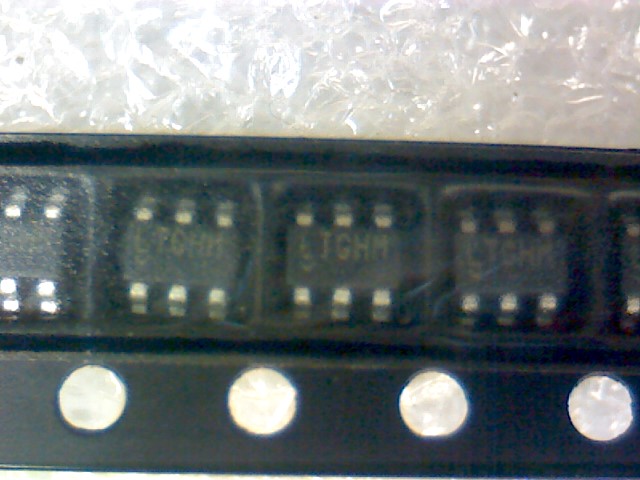

LT6236CS6#TRMPBF
  • LT6236CS6#TRMPBF
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT6236CS6#TRMPBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT6236CS6#TRMPBF
メーカーAD
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 11 uA
Bias Current-Max (IIB) @25C 10 uA
Common-mode Reject Ratio-Nom 115 dB
Frequency Compensation YES
Input Offset Voltage-Max 600 uV
JESD-30 Code R-PDSO-G6
JESD-609 Code e3
Length 2.9 mm
Low-Bias NO
Low-Offset YES
Micropower NO
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 6
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code VSSOP
Package Equivalence Code TSOP6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power NO
Power Supplies 3.3/5/+-5 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1 mm
Slew Rate-Min 35 V/us
Slew Rate-Nom 60 V/us
Sub Category Operational Amplifier
Supply Current-Max 4.3 mA
Supply Voltage Limit-Max 12.6 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 200000 kHz
Voltage Gain-Min 4100
Wideband YES
Width 1.625 mm
