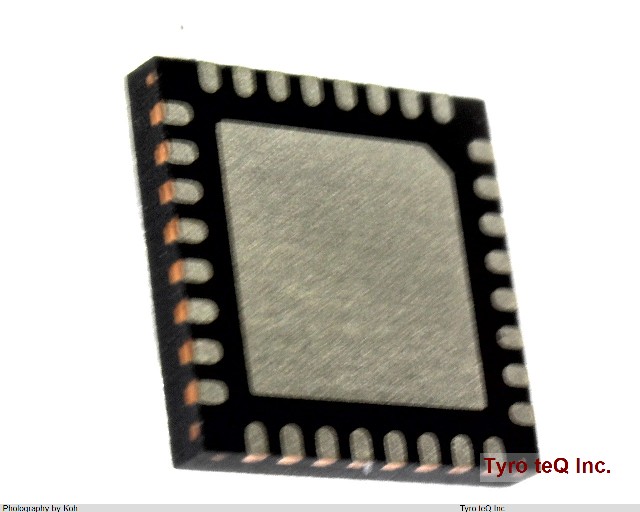

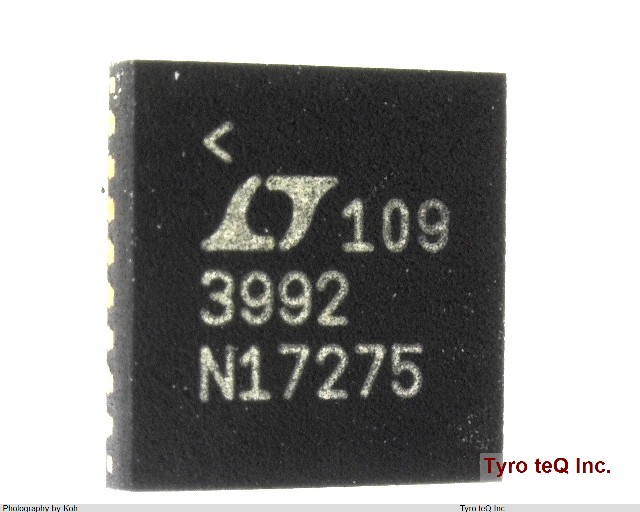

LT3992IUH#PBF
1
-
- 個
２営業日以内に回答いたします
LT3992IUH#PBF の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LT3992IUH#PBF |
|---|---|
| メーカー | AD |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Mode | CURRENT-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Max | 60 V |
| Input Voltage-Min | 3 V |
| Input Voltage-Nom | 15 V |
| JESD-30 Code | S-PQCC-N32 |
| JESD-609 Code | e3 |
| Length | 5 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Current-Max | 3 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HVQCCN |
| Package Equivalence Code | LCC32,.2SQ,20 |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 0.8 mm |
| Sub Category | Switching Regulator or Controllers |
| Surface Mount | YES |
| Switcher Configuration | BUCK |
| Switching Frequency-Max | 3000 kHz |
| Technology | BIPOLAR |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | MATTE TIN |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 5 mm |
| 会社名称 | アナログ・デバイセズ |
|---|---|
| 設立 | 1965 |
| 所在地 | One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States |
| URL | http://www.analog.com/ |
