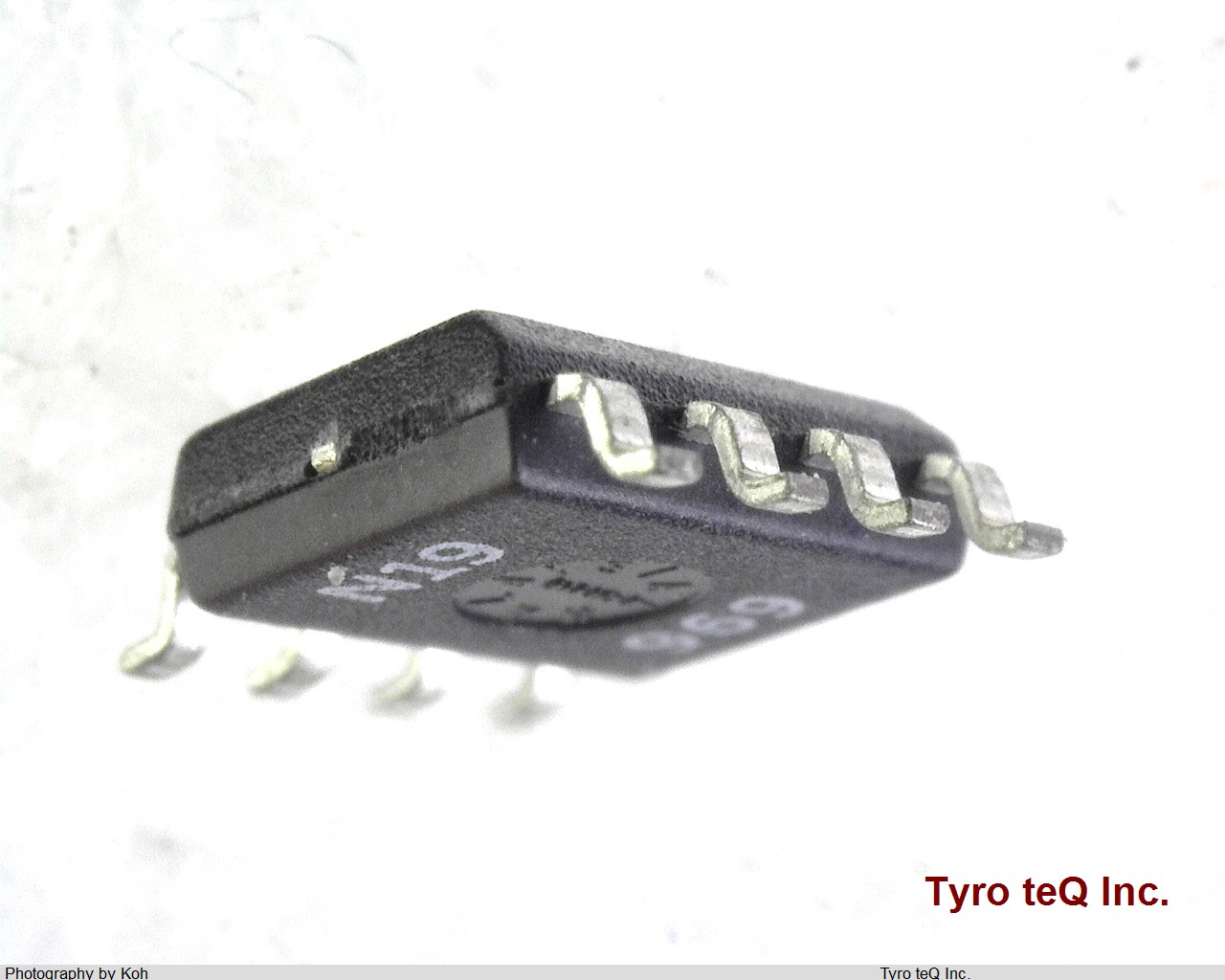

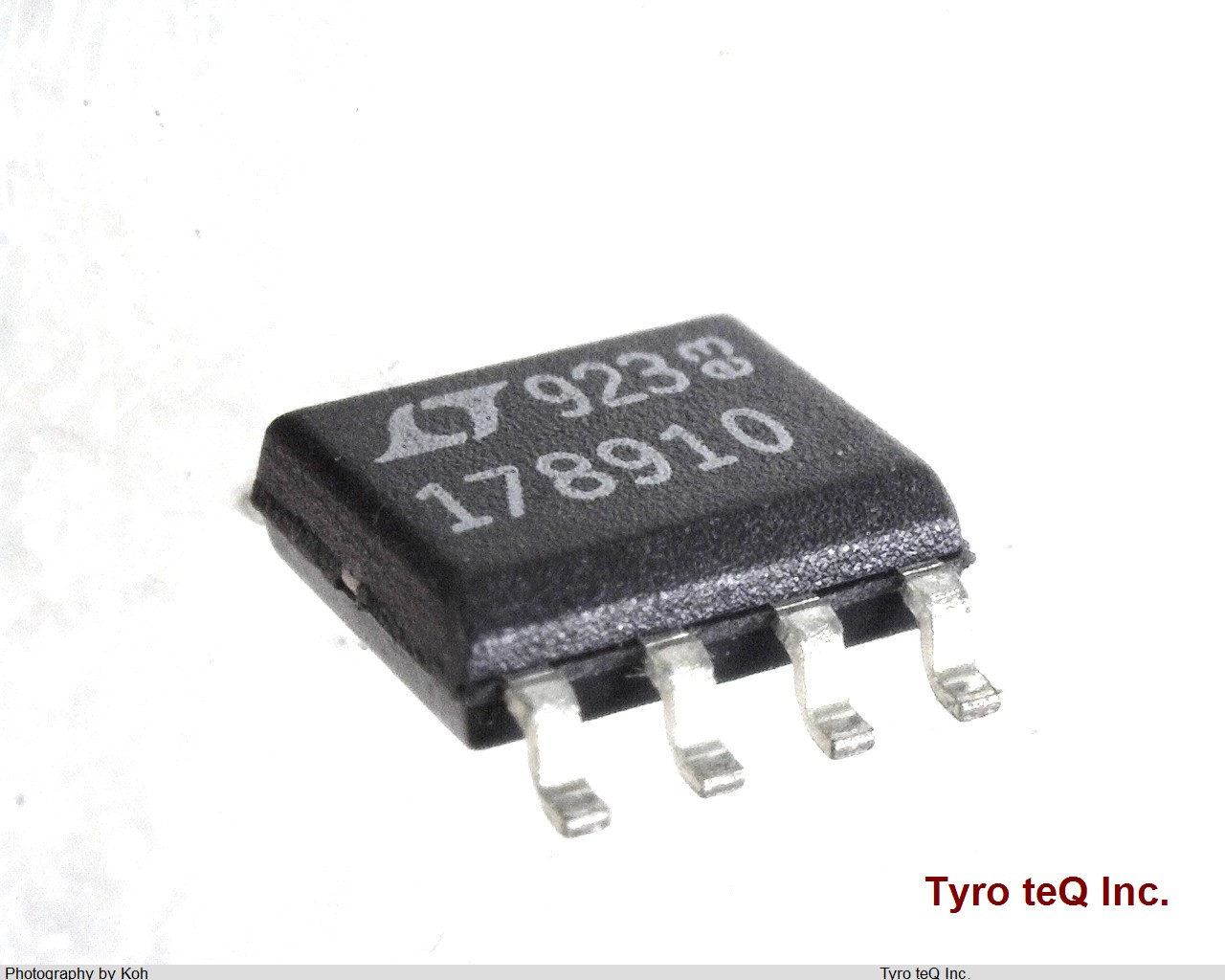

LT1789CS8-10#PBF

Name: LT1789CS8-10#PBF
Brand: AD
SKU: 400041936-0000-0000-0000

LT1789CS8-10#PBF - AD の商品詳細ページです。

２営業日以内に回答いたします

LT1789CS8-10#PBF の詳細情報

型番	LT1789CS8-10#PBF
メーカー	AD
Amplifier Type	INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB)	0.04 uA
Common-mode Reject Ratio-Min	88 dB
Input Offset Current-Max (IIO)	0.004 uA
Input Offset Voltage-Max	160 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9025 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Non-linearity-Max	0.0045 %
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.752 mm
Slew Rate-Nom	0.066 V/us
Sub Category	Instrumentation Amplifier
Supply Current-Max	0.15 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Gain-Max	1000
Voltage Gain-Min	10
Voltage Gain-Nom	100
Width	3.899 mm
