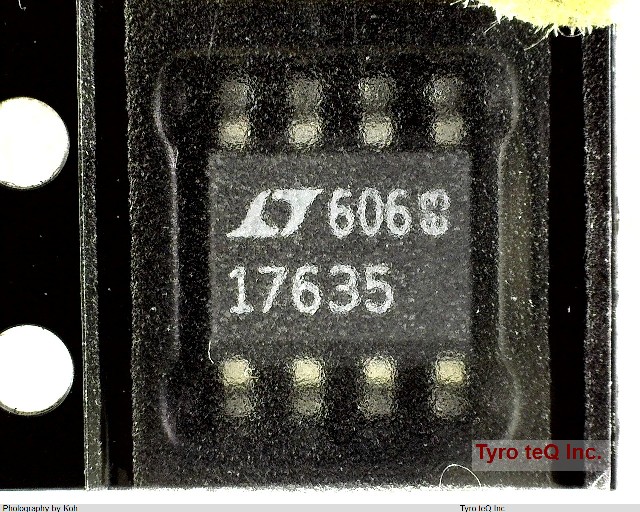

LT1763CS8-5#TRPBF データシート

Name: LT1763CS8-5#TRPBF
Brand: AD
SKU: 400040588-0000-0000-0000

LT1763CS8-5#TRPBF - AD の商品詳細ページです。

２営業日以内に回答いたします

LT1763CS8-5#TRPBF の詳細情報

型番	LT1763CS8-5#TRPBF
メーカー	AD
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.45 V
Dropout Voltage1-Nom	0.3 V
Input Voltage Absolute-Max	20 V
Input Voltage-Max	20 V
Input Voltage-Min	1.8 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Line Regulation-Max	0.005 %
Load Regulation-Max	0.05 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	5.125 V
Output Voltage1-Min	4.875 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.752 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Tolerance-Max	2.5 %
Width	3.9 mm
