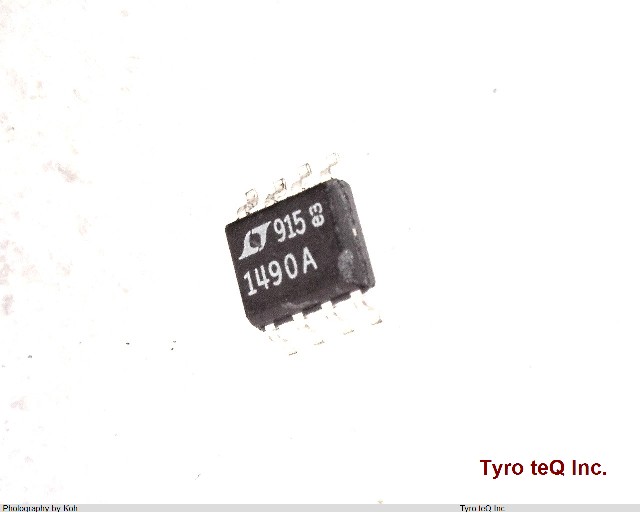

LT1490ACS8#PBF
  • LT1490ACS8#PBF
  • LT1490ACS8#PBF
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT1490ACS8#PBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT1490ACS8#PBF
メーカーAD
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.008 uA
Bias Current-Max (IIB) @25C 0.0003 uA
Common-mode Reject Ratio-Nom 98 dB
Frequency Compensation YES
Input Offset Voltage-Max 950 uV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9025 mm
Low-Bias NO
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -22 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Power NO
Power Supplies 3/5/+-15 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.752 mm
Slew Rate-Min 0.031 V/us
Slew Rate-Nom 0.07 V/us
Sub Category Operational Amplifier
Supply Current-Max 0.17 mA
Supply Voltage Limit-Max 22 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 200 kHz
Voltage Gain-Min 75000
Wideband NO
Width 3.899 mm
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
