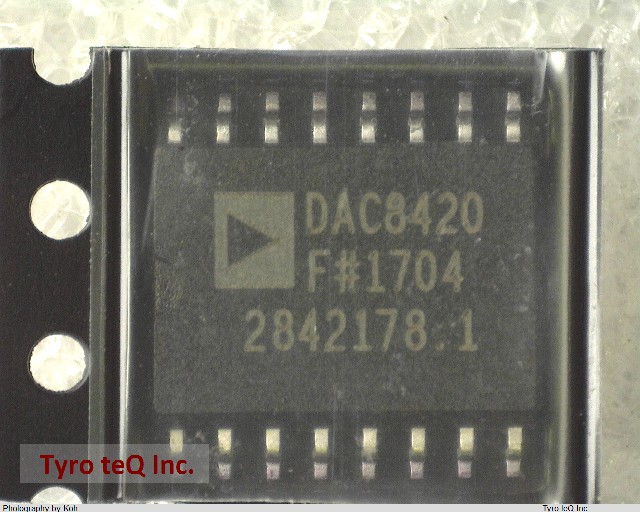

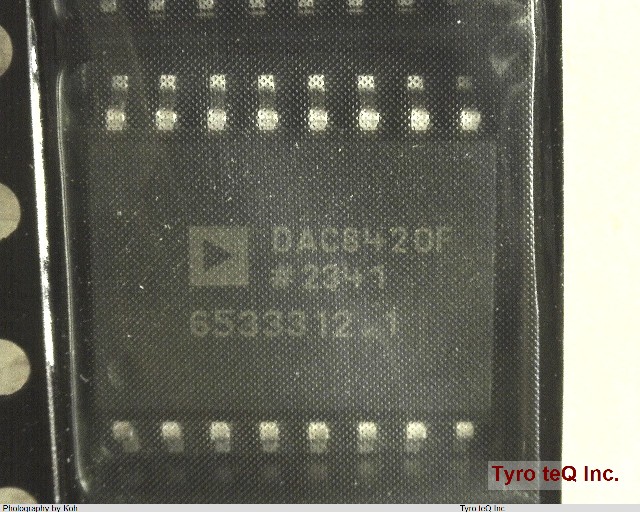

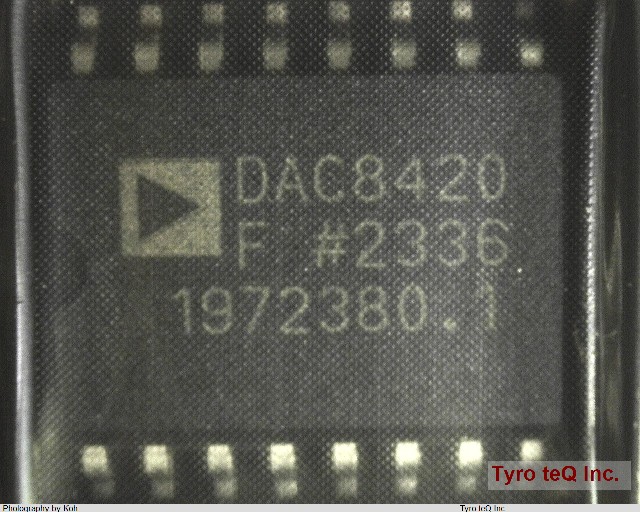

DAC8420FSZ データシート

Name: DAC8420FSZ
Brand: AD
SKU: 140049211-0000-0000-0000

DAC8420FSZ - AD の商品詳細ページです。

２営業日以内に回答いたします

DAC8420FSZ の詳細情報

型番	DAC8420FSZ
メーカー	AD
データシート
Analog Output Voltage-Max	2.5 V
Analog Output Voltage-Min	-2.5 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	SERIAL
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	10.3 mm
Linearity Error-Max (EL)	0.0977 %
Moisture Sensitivity Level	3
Negative Supply Voltage-Nom	-5 V
Number of Bits	12
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Settling Time-Nom (tstl)	8 us
Sub Category	Other Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
