DAC8412EPZ データシート

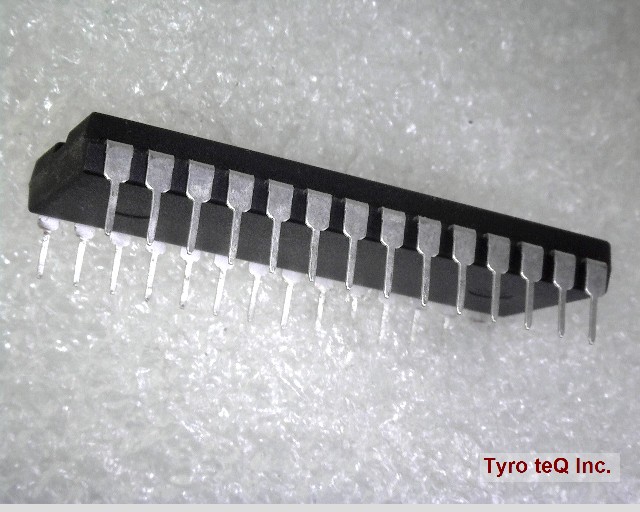

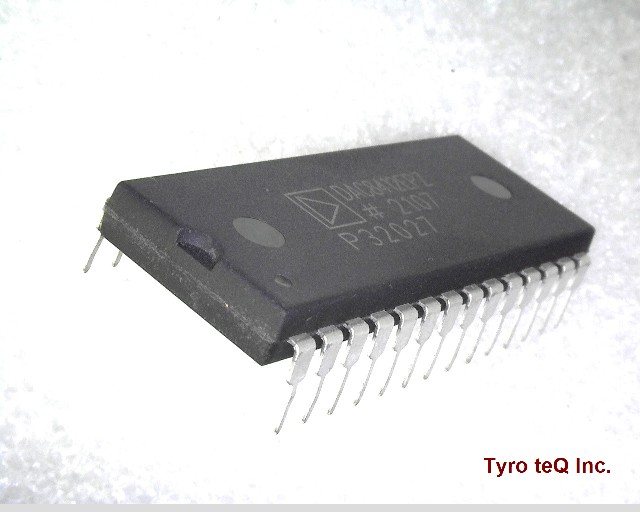

Name: DAC8412EPZ
Brand: AD
SKU: 140049196-0000-0000-0000

DAC8412EPZ - AD の商品詳細ページです。

２営業日以内に回答いたします

DAC8412EPZ の詳細情報

型番	DAC8412EPZ
メーカー	AD
データシート
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e3
Length	37.4 mm
Linearity Error-Max (EL)	0.0244 %
Negative Supply Voltage-Nom	-5 V
Number of Bits	12
Number of Functions	4
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	6.35 mm
Settling Time-Nom (tstl)	10 us
Sub Category	Other Converters
Supply Current-Max	12 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	15.24 mm
