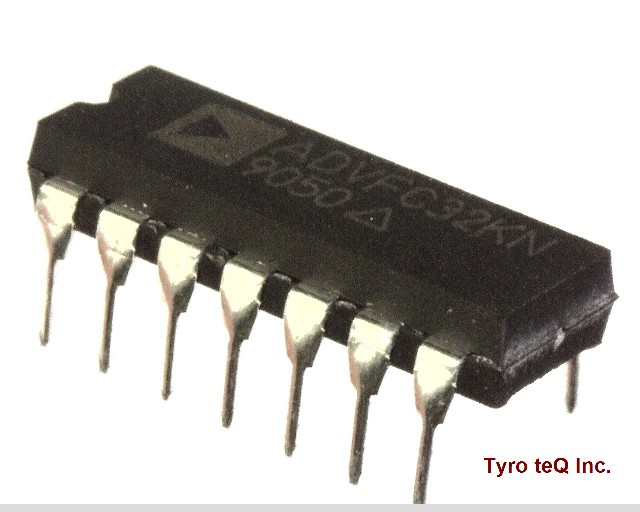

ADVFC32KN データシート

Name: ADVFC32KN
Brand: AD
SKU: 110000253-0000-0000-0000

ADVFC32KN - AD の商品詳細ページです。

２営業日以内に回答いたします

ADVFC32KN の詳細情報

型番	ADVFC32KN
メーカー	AD
データシート
Converter Type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.305 mm
Linearity Error-Max (EL)	0.2 %
Negative Input Voltage-Max	-10 V
Negative Supply Voltage-Max	-18 V
Negative Supply Voltage-Min	-9 V
Negative Supply Voltage-Nom	-15 V
Number of Functions	1
Number of Terminals	14
Operating Frequency-Max	0.5 MHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Analog Special Function Converters
Supply Current-Max	8 mA
Supply Voltage-Max	18 V
Supply Voltage-Min	9 V
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	7.62 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
