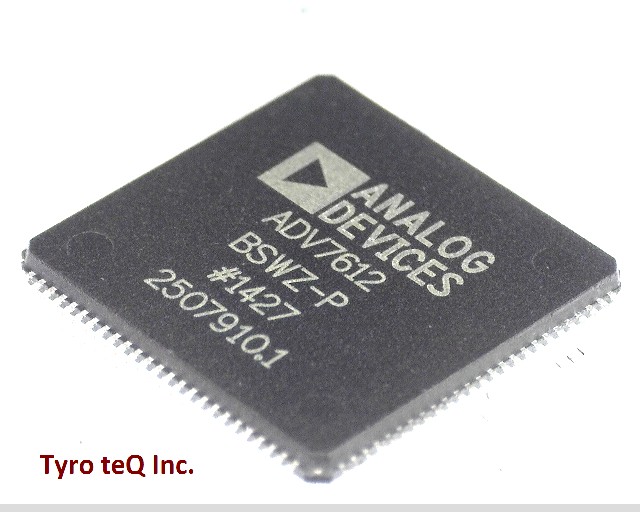

ADV7612BSWZ-P データシート

Name: ADV7612BSWZ-P
Brand: AD
SKU: 110209899-0000-0000-0000

ADV7612BSWZ-P - AD の商品詳細ページです。

２営業日以内に回答いたします

ADV7612BSWZ-P の詳細情報

型番	ADV7612BSWZ-P
メーカー	AD
データシート
Differential Output	NO
Input Characteristics	STANDARD
Interface IC Type	LINE RECEIVER
Interface Standard	I2C
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e3
Length	14 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	100
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HLFQFP
Package Shape	SQUARE
Package Style	FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Receive Delay-Max	300 ns
Receiver Number of Bits	1
Seated Height-Max	1.6 mm
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Supply Voltage1-Max	3.46 V
Supply Voltage1-Min	3.14 V
Supply Voltage1-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	14 mm
