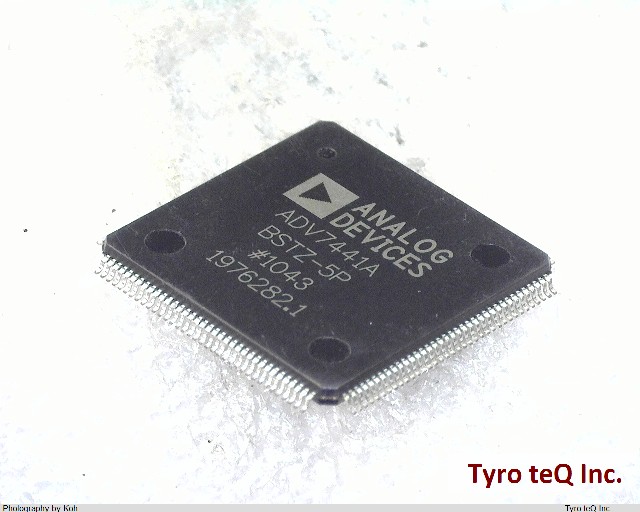

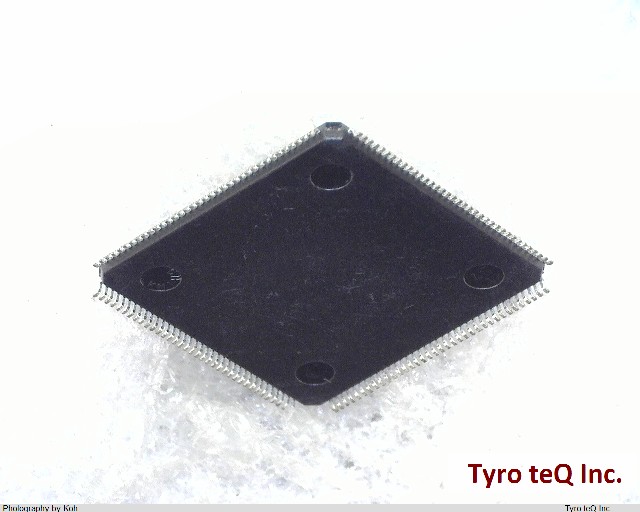

ADV7441ABSTZ-5P データシート

Name: ADV7441ABSTZ-5P
Brand: AD
SKU: 110202071-0000-0000-0000

ADV7441ABSTZ-5P - AD の商品詳細ページです。

２営業日以内に回答いたします

ADV7441ABSTZ-5P の詳細情報

型番	ADV7441ABSTZ-5P
メーカー	AD
データシート
Additional Feature	ALSO REQUIRES 1.8V DIGITAL SUPPLY
Consumer IC Type	CONSUMER CIRCUIT
JESD-30 Code	S-PQFP-G144
JESD-609 Code	e3
Length	20 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	144
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP144,.87SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8,3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Color Signal Converters
Supply Voltage-Max (Vsup)	1.89 V
Supply Voltage-Min (Vsup)	1.71 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	20 mm
