ADSP2105KP55 データシート

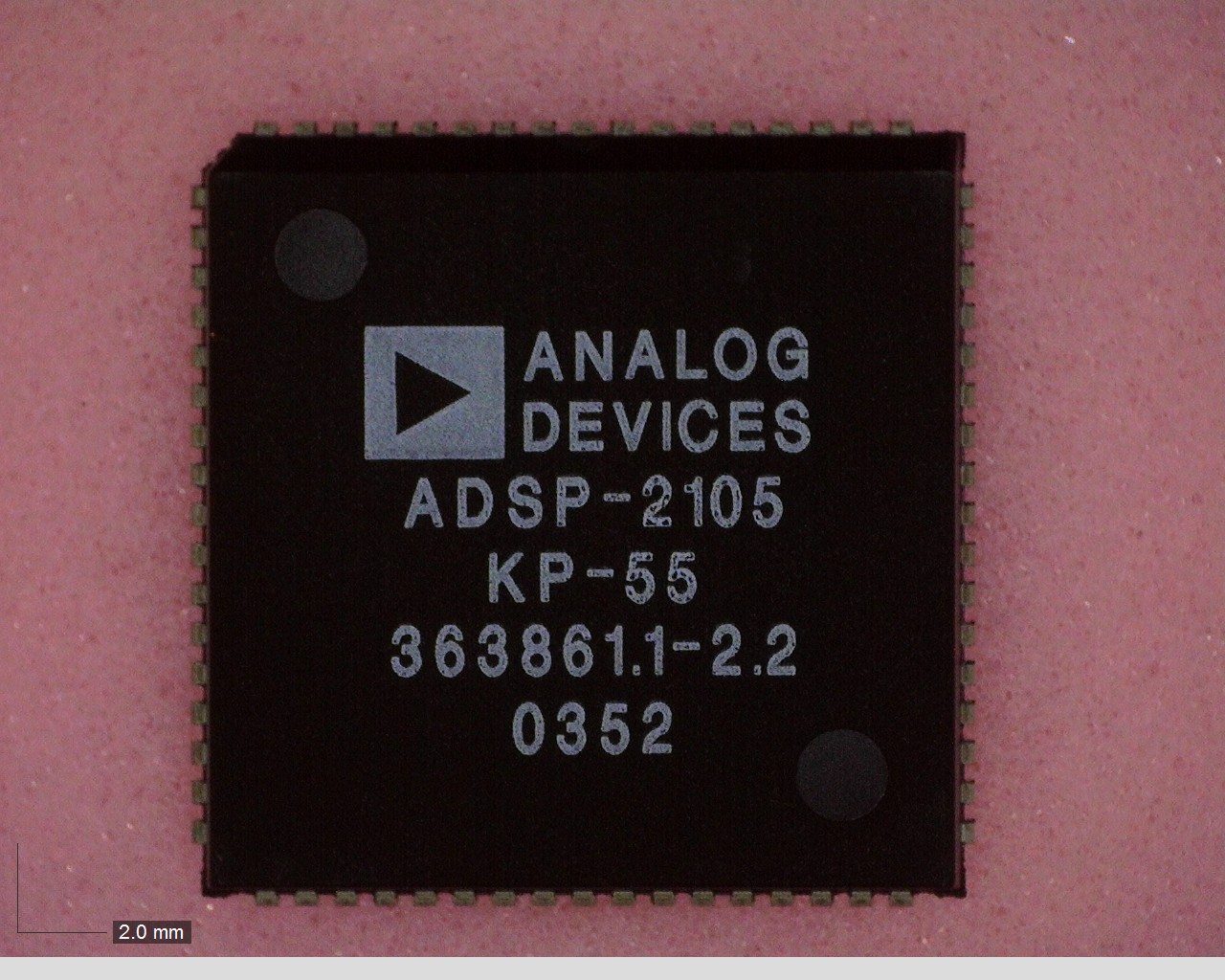

Name: ADSP2105KP55
Brand: AD
SKU: 110003439-0000-0000-0000

ADSP2105KP55 - AD の商品詳細ページです。

２営業日以内に回答いたします

ADSP2105KP55 の詳細情報

型番	ADSP2105KP55
メーカー	AD
データシート
Additional Feature	20 MIPS; SINGLE CYCLE INSTRUCTION EXECUTION
Address Bus Width	14
Barrel Shifter	YES
Bit Size	16
Boundary Scan	NO
Clock Frequency-Max	13.824 MHz
External Data Bus Width	24
Format	FIXED POINT
Integrated Cache	NO
Internal Bus Architecture	MULTIPLE
JESD-30 Code	S-PQCC-J68
JESD-609 Code	e0
Length	24.18 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	1
Number of Serial I/Os	1
Number of Terminals	68
Number of Timers	1
On Chip Data RAM Width	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC68,1.0SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	512
Seated Height-Max	4.45 mm
Sub Category	Digital Signal Processors
Supply Current-Max	24 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	24.18 mm
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
