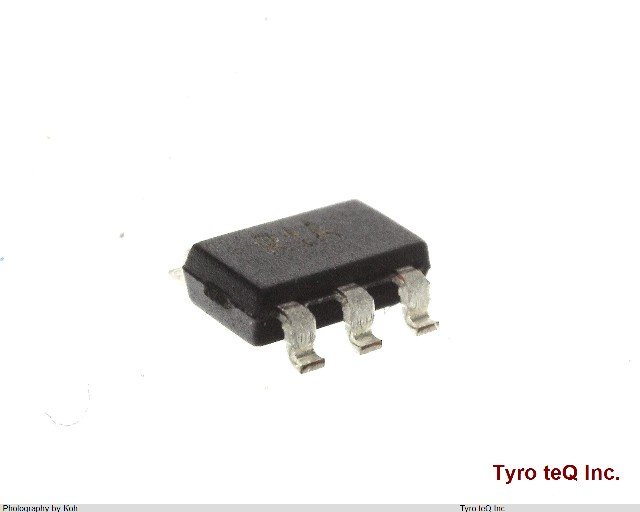

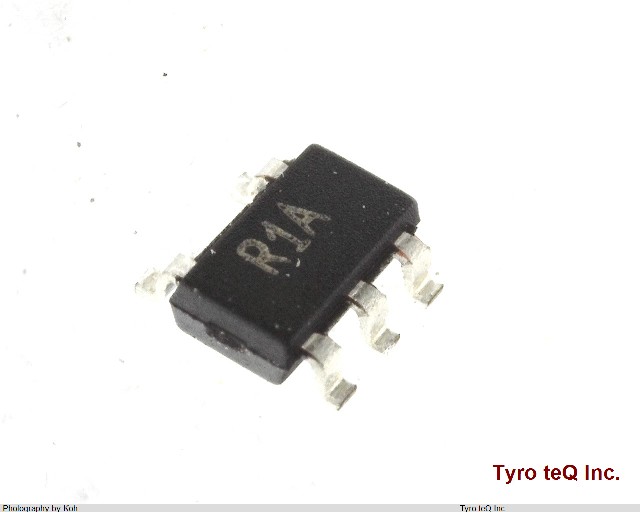

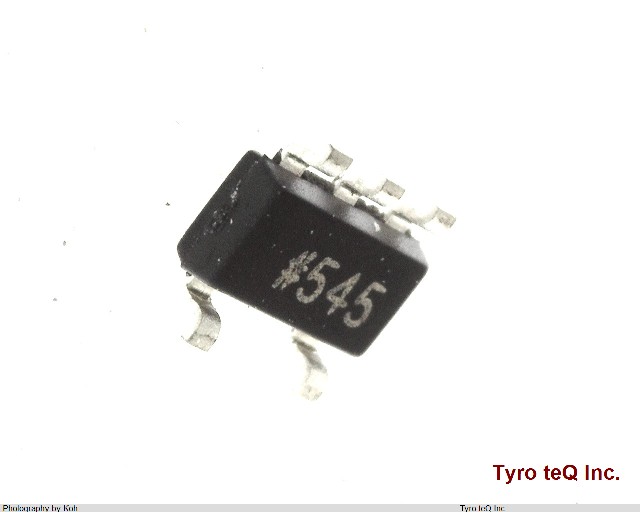

ADR391AUJZ-REEL7 データシート

Name: ADR391AUJZ-REEL7
Brand: AD
SKU: 110026005-0000-0000-0000

ADR391AUJZ-REEL7 - AD の商品詳細ページです。

２営業日以内に回答いたします

ADR391AUJZ-REEL7 の詳細情報

型番	ADR391AUJZ-REEL7
メーカー	AD
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e3
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	2.506 V
Output Voltage-Min	2.494 V
Output Voltage-Nom	2.5 V
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	2.8 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Temp Coef of Voltage-Max	25 ppm/Cel
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	0.24 %
Width	1.6 mm
