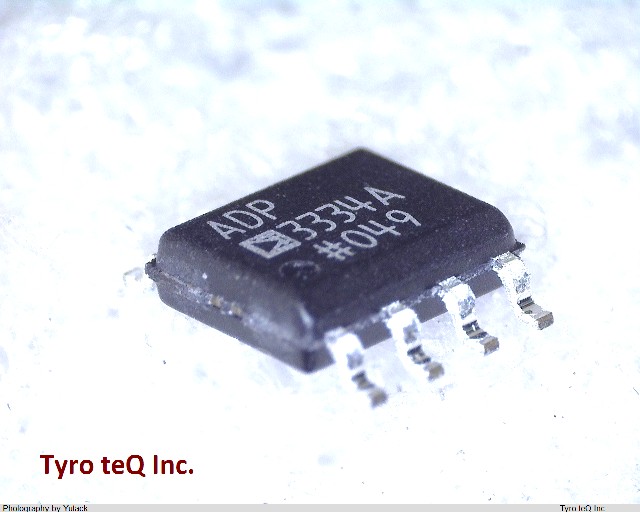

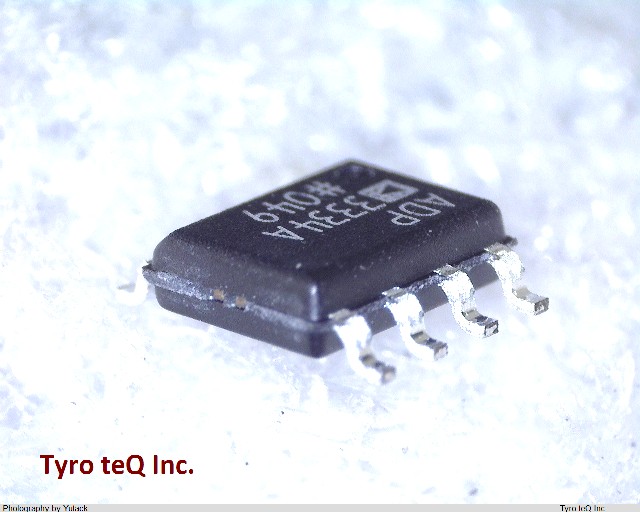

ADP3334ARZ データシート

Name: ADP3334ARZ
Brand: AD
SKU: 110025607-0000-0000-0000

ADP3334ARZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADP3334ARZ の詳細情報

型番	ADP3334ARZ
メーカー	AD
データシート
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.4 V
Dropout Voltage1-Nom	0.2 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	10 V
Output Voltage1-Min	1.5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.75 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
