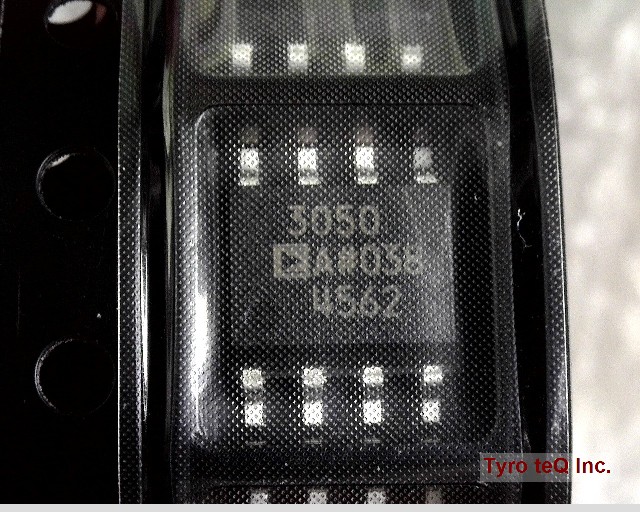

ADP3050ARZ-RL データシート

Name: ADP3050ARZ-RL
Brand: AD
SKU: 110025461-0000-0000-0000

ADP3050ARZ-RL - AD の商品詳細ページです。

２営業日以内に回答いたします

ADP3050ARZ-RL の詳細情報

型番	ADP3050ARZ-RL
メーカー	AD
データシート
Additional Feature	OUTPUT VOLTAGE IS ADJUSTABLE FROM 1.25 TO 12V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	30 V
Input Voltage-Min	3.6 V
Input Voltage-Nom	10 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2.1 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	240 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
